Concrete Culvert Pipe

Application :

• Drainage & Stormwater Culvert
• Sewerage Culvert

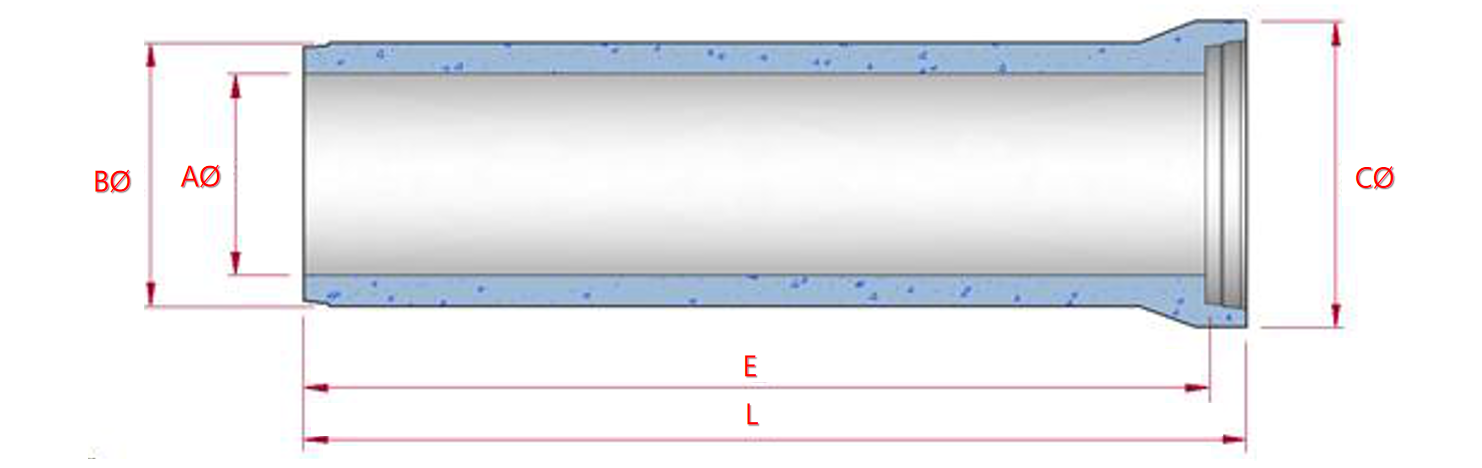

(i) Spigot & Socket with Rubber Ring Joint Pipes


Notes:

AØ : Barrel Internal Diameter
BØ : Barrel External Diameter
CØ : Socket External Diameter
E : Effective Length
L : Overall Length

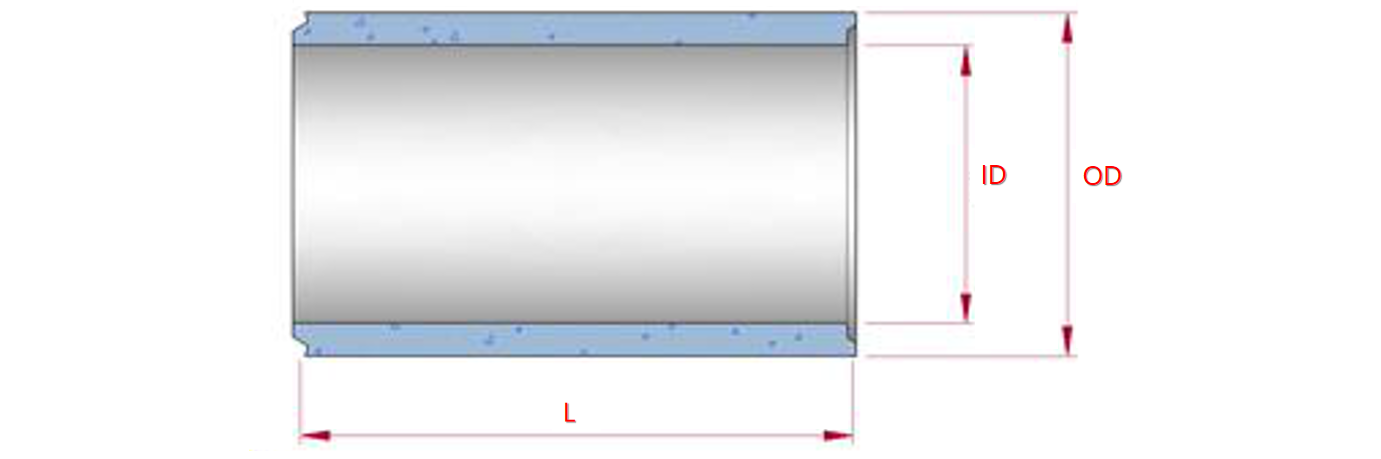

(ii) Spigot & Socket with Rubber Ring Joint Pipes (with 12mm Hac Lining)



Notes:

ID : Inner Diameter
OD : Outer Diameter
L : Overall Length

(i) Rebated / Ogee pipes with external flush joints

(ii) Rebated / Ogee pipes with internal flush joints

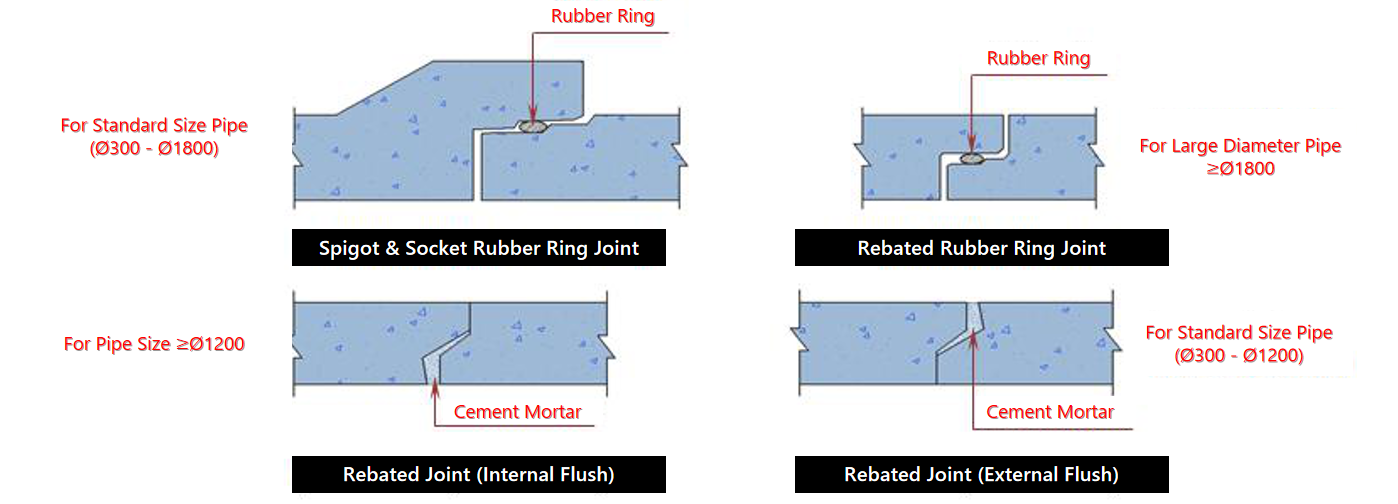

Joint Details :




Specification :

• All concrete pipes are to install with correct load line facing either top or bottom point of the pipe circumference. The load line can be identified by marking on the internal barrel surface of the pipe.
• Minimum cover to concrete pipe culvert is recommended to be 600mm to avoid undesirable point load action. Where the minimum cover cannot be achieved, the concrete pipe shall be surrounded in concrete.

• MS881 : Part 1 (Spigot & Socket With Rubber Ring Joint Pipe) & Part 3 (Rebate/Ogee Joint Pipes): 1991
• ISO 9001:2015 Quality Management System
