Reed Switches
Standex ORD9215/15-20 AT Series Reed Switch
Standex ORD9215/15-20 AT Series Reed Switch



Standex ORD9215/15-20 AT Series Reed Switch

Mobicon-Remote Electronic Pte Ltd flag
Kategori: Reed Switches Tersedia
Untuk maklumat lanjut, lawati laman web rasmi kami di mobicon.com.sg
Lawati Laman Web Rasmi Hubungi kami
Penerangan

DESCRIPTION

Reed Switch ORD9215 has a glass length of 17.0mm and diameter of 2.8mm. Rated power 10 W, Switching voltage 100 VDC, Switching current 0.4 Amp DC.



SPECIFICATIONS

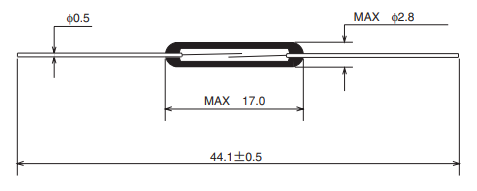

          Overall Length mm (inches) 44.1 (1.736)
          Glass Length Max. mm (inches) 17.0 (0.668)
          Glass Dia. Max. mm (inches) 2.8 (0.110)
          Lead Dia. mm (inches) 0.5 (0.019)
          Contact Form 1A (SPST) Normally Open (N.O.)
          Pull-In Range 10-50 AT
          Rated Power Max. 10W/100VDC/0.4 Amp DC


APPLICATIONS

General purpose, household appliance,  measurement equipment, telecommunications


Data sheet link: https://standexelectronics.com/viewer/pdfjs/web/viewer.php?file=https%3A%2F%2Fstandexelectronics.com%2Fwp-content%2Fuploads%2FReed_Switch_ORD9215.pdf
