Product Feature
Features
- Ideal solution for building smart factories with state of the art technology

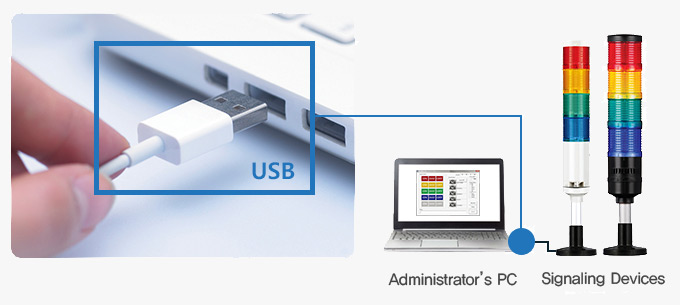

- LED tower light that is fully controlled by a PC application via USB port connection
- Possible to use USB cable connection without an additional power supply
Main Characteristics
- Provides MS Runtime libraries for developers to utilize in various PC applications
- Controlled by PC application
- LED Module Standard Operation: 2 layers will operate at the same time.
- 5 built-in Buzzer tones available
- Volume : Buzzer – Max. 90dB at 1m
- USB communication cable is comprised of VCC, D-, D +, GND, and shield
- Protection rating : IP54/65
- Compliant with RoHS directive
Operational Environment
- OS Support(32bit / 64bit): Windows XP, Win 7, Win 10
- Library Support: VC++, VB, Delphi(32bit only), C#(64bit only)
- Support host that is USB 1.1 or higher
- Power supply : DC 5V/500mA rated PC USB * 2 ports are required
- Multiple connections on 1 PC is optionally available (up-to 4 units).
※ The Y cable included with the product has a communication and power connection.
※ Multiple LED modules operate within the current range of USB port current coverage.
.jpg)

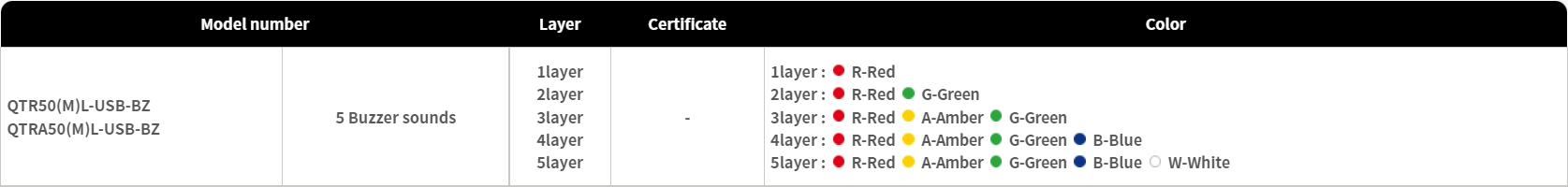

Product Specifications
L.png)
Accessories
- LB18
- LW18
- QL18
- QZ18
- SCREW & NUT
- SL18
- SZ18
- TWS45
- TWA45
