Description
SPECIFICATIONS
Max. Switching Current 3 A
Coil Voltage 24VDC
Type Reed
Coil Resistance 1 520 Ohm
Coil Power 378 mW
Max. Switching Power 50W
Max. Switching Voltage 7500VDC
Dielectric Strength (between coil and contacts) 10000VDC
Operate/Release time 3,2ms/1,5ms

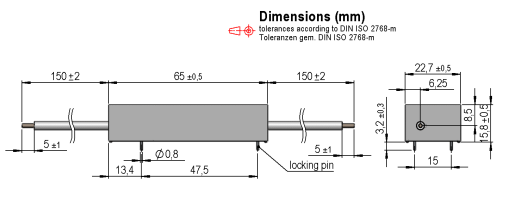

Dimensions 65x22,7x15,8mm
Contact Material Cu alloy + Sn plated
