Plumbing/UPVC Pressure Pipes & Fittings
PVC Fittings V-Tank Connector 1" (25MM)
Description
These UPVC pressure fittings are manufacturing according to standard MS628 Part 2 and complied with BS 4346. These fittings are used for solvent cement jointing to UPVC pressure pipes. UPVC pressure piping system is suitable for cold water service such as water reticulation and irrigation system.
Bina Plastic produces variety types of UPVC pressure fittings for sizes ranging from 15mm to 200mm (½ in to 8 in).
Dimension (mm)
|

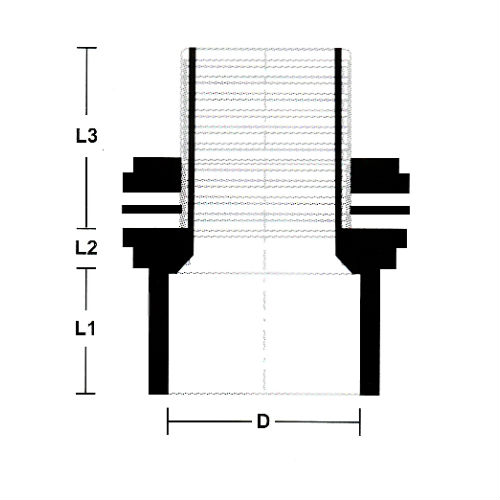

Diagram |
Size (mm) |
D |
L1 |
L2 |
L3 |
 |
15 |
21.3 |
32.6 |
11.0 |
32.7 |
|
20 |
26.7 |
33.6 |
11.0 |
37.8 |
|
25 |
33.5 |
42.4 |
10.6 |
40.1 |
|
32 |
42.2 |
51.5 |
11.6 |
57.9 |
|
40 |
48.2 |
62.8 |
13.3 |
56.9 |
|
50 |
60.3 |
64.5 |
14.7 |
34.6 |
