Electronic Expansion Valve Series DPF-T/S

T/S series electronic expansion valves are designed for usage in air conditioning and refrigeration systems or in heat pumps. The valve supports automatic adjustment of refrigerant flow rate and makes the system work under optimized conditions for the purpose of fast cooling or heating, precise temperature control, and energy saving. The valve can also be used e.g. for suction line pressure controls. These valves provide bi-directional operation to control the refrigerant flow rate in heating or cooling mode.

Features

Applicable for oil-free system (T series)
Smaller installation space: low height, small volume, lightweight
Optimized flow path design for noise reduction
Fast operation, Energy Saving
Applicable for reversible systems like heat pumps: bidirectional flow

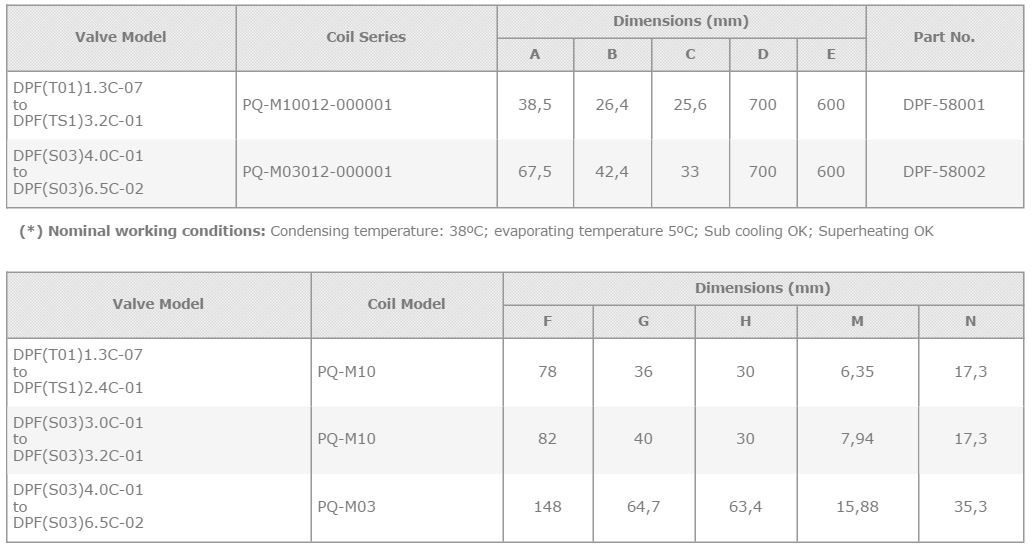

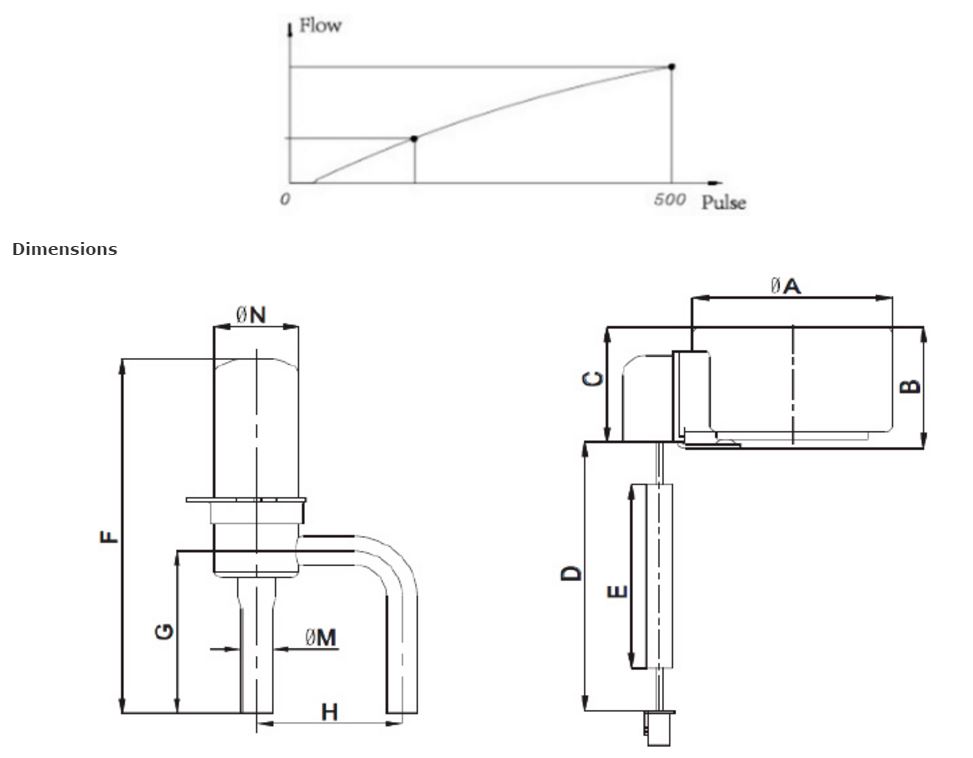

General Specifications

Applicable refrigerants: R22, R134A, R404A, R407C, R410A etc.
Cooling Capacity: 3,5 to 105 kW (R22 Nominal Capacity)
Medium temperature: -30°C (-22°F) to +70°C (158°F) (duty cycle rate below 50%)
Ambient temperature: -30°C (-22°F) to +60°C (140°F) (duty cycle rate below 50%)
Relative humidity: below 95% RH
Ps: 4.5MPa (45 Bar)
Installation position: Coil upwards, valve rotor central axis within +/-15° versus vertical axis
500 steps (full stroke); 32 ± 20 opening steps

Electrical Parameters

Rated Voltage: 12V DC(+/- 10%), rectangular wave
Actuating mode: 4-phase 8-step permanent magnet stepping motor of the direct-acting type
Excitation mode: 1 ~ 2 phase excitation, monopole actuation
Excitation rate: 30 to 90pps (Maintain excitation in stop position min. 0.1~1.0sec. to activate the self-holding mechanism.)
Coil current: 260mA/phase (20°C)
Coil resistance: 46 +/- 3.7 ?/phase (20°C)
Insulation class of coil: E
Protection class: IP 66
