Description

Model: NSW100-10P
Zyxel 8-port GbE Nebula Cloud Managed PoE Switch

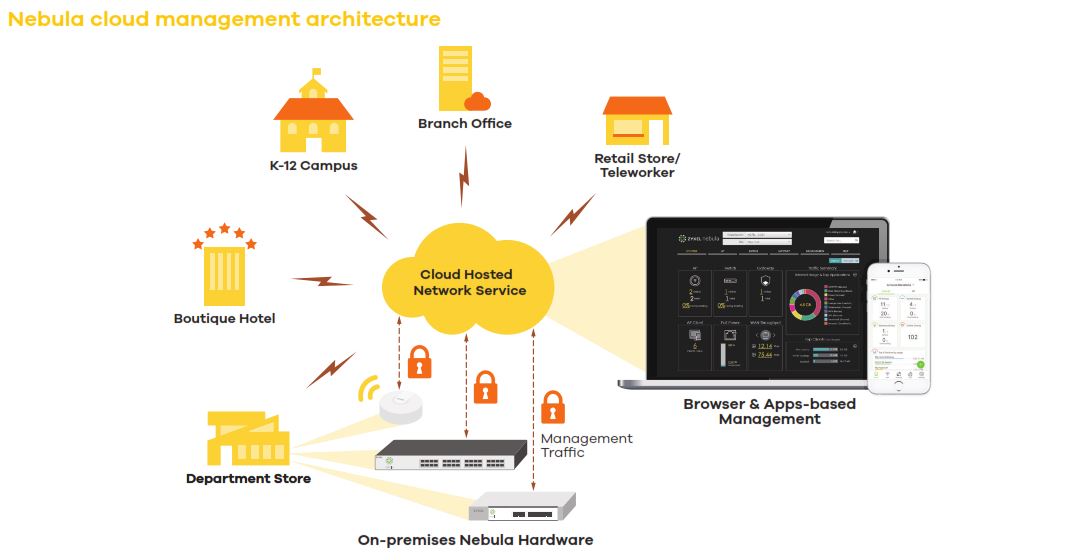

The Zyxel Nebula NSW100 Series Cloud Managed Switches provide Layer-2 Gigabit access switching with 8/24-port PoE and non-PoE models. The PoE models support 802.3at PoE Plus standards to provide a 180/375-watt highpower budget. Every Nebula switch is designed to be managed completely from the Nebula Control Center. The cloud-based management interface provides site-wide configuration and monitoring of all ports, which allows multiple switches to be configured

at the same time with a single click over the Web. The Nebula switches bring many benefits of the cloud management systems, such as simplified configuration, easy management, site-wide visibility and real-time control for speedy branch network deployments into networks. Advanced settings such as user friendly ACL, VLAN-based QoS and PoE scheduling significantly improve the efficiency of network management.

Key Features

Essential L2 features with user-friendly ACL and VLAN configuration
Optimized for quality voice and video traffic with high 375 (28P)/180 (10P)-watt power budget PoE technology
Support Port Mirroring for network traffic monitoring
Support DHCP Server Guard and IGMP snooping
RADIUS, static MAC forwarding and 802.1X authentication

Specification

Nebula switch

Models	NSW100-10	NSW100-10P	NSW100-28	NSW100-28P	NSW200-28P
Models
Description	8-port GbE Nebula Cloud Managed Switch	8-port GbE Nebula Cloud Managed PoE Switch	24-port GbE Nebula Cloud Managed Switch	24-port GbE Nebula Cloud Managed PoE Switch	24-port GbE Nebula Cloud Managed PoE Switch with 10GbE Uplink
Port Density
Total port count	10	10	28	28	28
100/1000 Mbps	8	-	24	-	-
100/1000 Mbps PoE	-	8	-	24	24
10 Gigabit SFP+	-	-	-	-	4
Gigabit combo (SFP/RJ-45)	2	2	4	4	-
Performance
Switching capacity (Gbps)	20	20	56	56	128
Forwarding rate (Mbps)	14.88	15	41.67	41.67	95.2
Packet buffer (KB)	448	448	1536	1536	1536
MAC address table	16 K	16 K	16 K	16 K	16 K
Power
Input	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz	100 - 240 V AC, 50/60 Hz
Max. power consumption (watt)	12.3	230	27.2	476.7	453
Total PoE power budget (watt)	-	180	-	375	375
Physical Specifications
Item	Dimensions (WxDxH)(mm/in.): 250 x 150 x 44/9.84 x 5.91 x 1.73 Weight (kg/lb.): 1.34/2.95	Dimensions (WxDxH)(mm/in.): 330 x 230.5 x 44.5/12.99 x 9.07 x 1.75 Weight (kg/lb.): 2.66/5.86	Dimensions (WxDxH)(mm/in.): 441 x 131 x 44/17.36 x 5.16 x 1.73 Weight (kg/lb.): 2.172/4.79	Dimensions (WxDxH)(mm/in.): 440 x 330 x 44.5/17.32 x 12.99 x 1.7 Weight (kg/lb.): 4.79/10.56	Dimensions (WxDxH)(mm/in.): 440 x 330 x 44.5/ 17.32 x 12.99 x 1.75 Weight (kg/lb.): 5.06/11.16
Packing	Dimensions (WxDxH)(mm/in.): 366 x 214 x 79/14.41 x 8.43 x 3.11 Weight (kg/lb.): 2.27/5	Dimensions (WxDxH)(mm/in.): 389 x 337 x 79/15.31 x 13.27 x 3.11 Weight (kg/lb.): 3.65/8.05	Dimensions (WxDxH)(mm/in.): 561 x 220 x 82/22.09 x 8.66 x 3.23 Weight (kg/lb.): 3.263/7.19	Dimensions (WxDxH)(mm/in.): 583x451x98/22.95x17.76x3.86 Weight (kg/lb.): 5.747/12.67	Dimensions (WxDxH)(mm/in.): 586 x 452 x 97/23.07 x 17.8 x 3.82 Weight (kg/lb.): 6.4/14.1
Included accessories	Power cord Rack mounting kit
Environmental Specifications
Operating	Temperature : 0°C to 50°C/32°F to 122°F Humidity: 10% to 90% (non-condensing)
Storage	Temperature : -40°C to 70°C/-40°F to 158°F Humidity: 10% to 95% (non-condensing)
MTBF (hr)	1,382,030	1,155,719	616,247	949,326	560,726
Heat dissipation (BTU/hr)	41.943	784.3	92.752	1,625.55	1,483.40
Acoustic noise (dBA)	0	37.7	0	59.6	42.075
