Why Choose KOKENT ENTERPRISE?
We have more than 30 year of company operation and Water Pump Service Experience ! And not only for Water Pump ! We also Selling Hardware and Machinery ( Power tools, Hydraulic equipment, Workshop Equipment, and Pump Equipment etc) Good service and price
Slogan {We always hope our customer can buy happy not just product}''
1) Kokent Enterprise Sdn Bhd (Easy to search in Waze , Google Map)
No. 522, Jln Cheras, Batu 3 1/4, 56100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur
2) Grundfos Authorized Dealer, 100% Original Product !
3) Free consultation on installation and service repair !
4) Repair spare part ready stock !
SOLOLIFT2 CWC-3
Suitable for
- Commercial wastewater
- Domestic wastewater
- Industrial wastewater treatment & reuse
Grundfos SOLOLIFT2 are small, compact, ready-to-install automatic lifting stations with integrated powerful cutter systems. Suitable for pumping wastewater with feces from private dwellings. The unit is designed according to EN 12050-3.
SOLOLIFT2 CWC-3

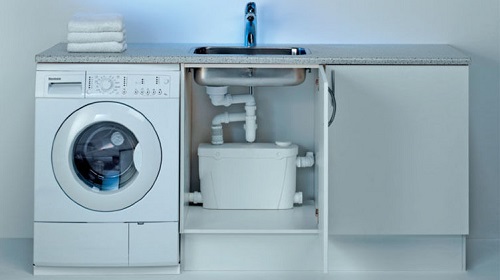

Sololift2 CWC-3 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where wastewater cannot be led directly to the sewer by means of a natural downward slope. Sololift2 CWC-3 is typically used for:
- wall-hung toilets, cabinet showers and washbasins in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established.
|
|
Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. Sololift2 CWC-3 is suitable for installation in a hollow space behind a wall-hung toilet. This lifting station is only suitable for pumping wastewater from a cabinet shower and a washbasin as well as sewage water from a toilet containing toilet paper and faeces. The pumping of liquids containing other material may cause faults and limit the scope of our guarantee. The compact lifting station is equipped with
- Cable with or without plug (see technical data)
- Horizontal or vertical fastening possibility of discharge hose connector with several adaptors for pipes with Ø22-40mm
- integrated non return valve
- Dry and high performance motor unit incl. thermal protection, pressure switch and controller
- DN100 toilet connection hose
- Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
- Slot for an alarm board with buzzer (accessory)
- Manual anti clogging function and separate drain connection for service
- Venting valve with overflow protection
- Uplift fixation clips
|
|
Design according to EN12050-3 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.
Specifications
| Product name |
SOLOLIFT2 CWC-3 |
| Product No |
97775316 |
| EAN number |
5710624187258 |
| Price |
|
Technical
| Head max |
8.5 m |
| Approvals on nameplate |
CE,TR,VDEEMV,VDE,MORO |
| Curve tolerance |
ISO9906:2012 3B |
Materials
Installation
| Pump inlet |
32/36/40, 36/40/50, DN 100 |
| Pump outlet |
22/25/28/32/36/40 |
| Number of leads |
3X0,75MM2 |
Liquid
| Maximum liquid temperature |
50 °C |
| Density |
998.2 kg/m³ |
Electrical data
| Power input - P1 |
620 W |
| Mains frequency |
50 Hz |
| Rated voltage |
1 x 220-240 V |
| Rated current |
3 A |
| Cos phi - power factor |
0.92 |
| Rated speed |
2800 rpm |
| Enclosure class (IEC 34-5) |
IP44 |
| Insulation class (IEC 85) |
F |
| Thermal protec |
THERMIK S06-150-05 |
| Length of cable |
1.2 m |
| Cable type |
H05VV-F-3G |
| Type of cable plug |
SCHUKO |
Others
| Net weight |
8.09 kg |
| Gross weight |
9.69 kg |
| Product range |
International |
| Danish VVS No. |
614364632 |
