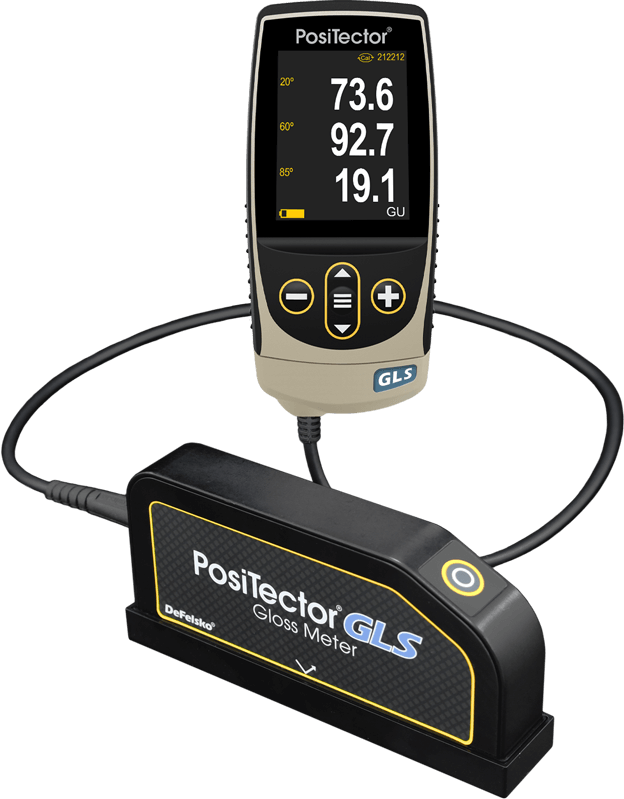

PosiTector® GLS

Gloss Meter

Portable gloss measurement for all surface finishes

Larger 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
Automatic Diagnosis and Auto Calibration performed upon power-on using the protective base plate with integrated calibration standard (tile)
Fast measurement speeds of 60+ readings per minute
2 Powerful Scan Modes for quantifying large surfaces (Advanced models only)
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included

Conforms to ASTM C584/D523/D4039, ISO 2813/7668, JIS Z 8741, AS/NZS 1580.602.2

Features

Simple

Fast measurement speed—60+ readings per minute
Larger 2.8'' impact resistant color touchscreen with redesigned keypad for quick menu navigation
On-gage help explains menu items at the touch of a button
RESET feature instantly restores factory settings

Durable

All-metal probe construction for long term stability
Weatherproof, dustproof, and water-resistant gage body—IP65-rated enclosure
Ergonomic design with durable rubberized grip
Rugged, indoor/outdoor instrument—ideal for field or shop use
Shock-absorbing protective rubber holster for added impact resistance
Two year warranty on gage body AND probe

Powerful

Statistics mode continually displays/updates average, standard deviation, min/max, and number of readings while measuring
Screen Capture—save 100 screen images for record keeping and review
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits—can be used as Pass/Fail for quick inspection
Instant-on feature quickly powers up the gage if recently powered down
Up to 30% longer battery life
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included
View pre-formatted reports and .csv data with PosiSoft USB Drive—no software installation required
Every stored measurement is date and time stamped
Includes PosiSoft Software for viewing and reporting data
Software Updates via web keep your gage current

Accurate

Certificate of Calibration showing traceability to NRC for both the probe and gloss standard included
Automatic Diagnosis and Auto Calibration upon power-on using the protective base plate with integrated calibration standard (tile)
Store multiple calibration standards (tiles) for quick calibration adjustment
Conforms to national and international standards including ISO and ASTM

Versatile

PosiTector body accepts all PosiTector probes easily converting to a coating thickness gage, dew point meter, soluble surface profile gage, soluble salt tester, hardness tester, or ultrasonic wall thickness gage
Selectable units for each geometry—Gloss and % Reflectance
Auto rotating display with Flip Lock
Selectable display languages

Specifications

20°

60°

85°

Measurement Area

10 x 10 mm

10 x 20 mm

4 x 45 mm

Measurement Range

0 — 2,000 GU

0 — 1,000 GU

0 — 160 GU

Repeatability

±0.2 GU (≤100 GU), ±0.2% (>100 GU)

Reproducibility

±0.5 GU (≤100 GU), ±0.5% (>100 GU)

Resolution

Gloss

% Reflectance

Haze

±0.1 GU (≤100 GU), ±1 GU (>100 GU)

0.1%

±0.1 (≤100), ±1 (>100)

Operating Conditions

0° to 45° C (32° to 113° F) - non-condensing

Probe Size

165 x 73 x 32 mm (6.5'' x 2.875'' x 1.25'')

Probe Weight

555 g (19.6 oz.)

ALL GAGES COME COMPLETE with protective base plate with integrated calibration standard (tile), 10 cleaning wipes, protective rubber holster, wrist strap, 3 AAA batteries, instructions, hard shell case, protective lens shield, Long Form Certificate of Calibration, USB cable, PosiSoft Software, two year warranty.

Download PosiTector GLS Full Catalog
