PNE PNE EMERGENCY LIGHT PEL-28R-LED RECESS MOUNT (SELF-CONTAINED EMERGENCY LUMINAIRE SUPER BRIGHT LED)


Technical data

  1. Model: PEL-28R-LED

  2. Mode: Non-Maintained

  3. Weight: 1.6kg

  4. Battery: 3.6V 1.0AH Ni-Cad Battery

  5. Housing: EG steel with powder coated paint, acrylic diffuser

  6. Charger: Constant current

  7. Mounting: Surface or Recess mounted on ceiling

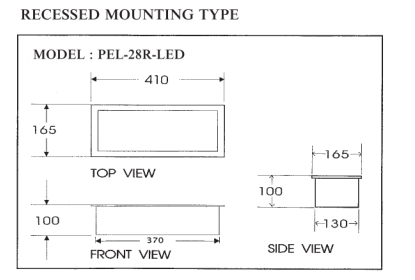

  8. Dimension (mm): 410mm(L)x 100mm (H) x 165mm (W)

  9. Monitoring: Red LED ''ON'' indicates charging. Equipped with push test switch to simulate power failure.

  10. Compliance: SIRIM MS 619-2-22:2005 , MS IEC 60598-1:2012. Jabatan Bomba dan Penyelamat certified

  11. Light Source: 18 pcs super birght LED (SMD)

  12. Lamp Wattage: 1.20W

  13. Input Voltage: 240V +/- 10% 50Hz

  14. Recharge Period: 16 - 24 hours

  15. Back Up Duration: 3 hours

  16. Battery Protection: Low voltage cut off to prevent from over discharging.

  17. Power Consumption: <5W

  18. Ingress of Protection: IP-20

  19. Operating Temperature: 0 °C to 65 °C

  20. Lumen: 99.13 lm

  21. Input Power: ~2.8W

  22. C.C.T: 12941

  23. C.R.I: Ra 80
