SJLITE ECO SAC T8 HD FITTING 320 SERIES ECO SAC 3A 320 (HD)

• ECO SAC 2A 220 (HD)

• ECO SAC 3A 320 (HD)

• ECO SAC 4A 420 (HD)

• ECO SAC 2C 240 (HD)

1. Designed for exposed T-bar ceiling grid.

2. Diffuser designed in normal hinged for either side for easy maintenance.

3. Provided even light transmission, combined with a very low luminosity at angle approaching the horizontal surface.

4. This range was designed to minimize glare and maximize light output and visual comfort together with a good degree of protection.

1. Suitable for locations where good horizontal illumination is important.

1. Input Voltage (V) : 240V-50Hz

2. Power Factor (λ): >0.9

1. Mounting: Recessed

2. Housing Material: Cold roll stell

3. Coating: Epoxy polyester powder

4. Light Source: SJLITE ECO Glass Tube HO

5. Ingress Protection: IP20

6. Insulation Classification: Class I

7. No. of Lamp: 3

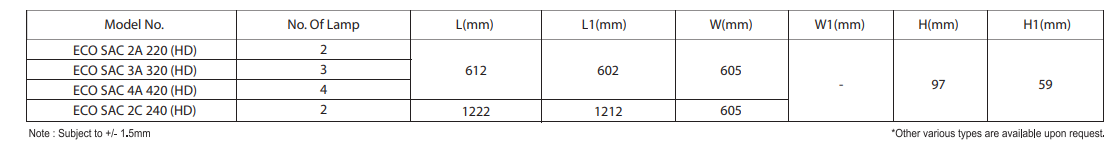

8. Dimension (mm): L - 612mm ; L1 - 602mm ; W - 605mm ; H - 97mm ; H1 - 59mm

9. ​Length of Tube: A (2ft)

1. Diffuser Material: Polystyrene

2. Diffuser Pattern: Wide choice of diffuser type for selection

1. Option Accessories: Fixed output

WIRING DIAGRAM
