PHILIPS LIGHTING ESSENTIAL SMARTBRIGHT G3 LED FLOODLIGHT 30W 911401732382 911401732392 911401732402

PHILIPS LIGHTING ESSENTIAL SMARTBRIGHT G3 LED FLOODLIGHT 30W 911401732382 911401732392 911401732402

分类: LED FLOOD LIGHT / SPOT LIGHT 当前有货
欲了解更多详情,请游览我们的官方网站 esllighting.com.my

详情

PHILIPS LIGHTING ESSENTIAL SMARTBRIGHT G3 LED FLOOD LIGHT 30W 911401732382 911401732392 911401732402 WARM WHITE / NEUTRAL WHITE / COOL DAYLIGHT

The Essential SmartBright G3 LED floodlight comes with a compact and sturdy design. Its light weight with robust die-cast aluminum housing and corrosion-proof coating, suitable for general outdoor application. Higher efficacy than last genenration, achieves more enery savings.

GENERAL INFORMATION

  1. Light source color : 830 warm white / 840 neutral white / 865 cool daylight

  2. Light source replaceable : No

  3. Driver included : Yes

  4. Optical cover/lens type : GB [Glass bowl / cover]

  5. Luminaire light beam spread : 110°

  6. Connection : Flying leads/wires

  7. Cable : Cable 0.3m without plug

  8. Protection class IEC : Safety class I

  9. Flammability mark : For mounting on normally flammable surfaces

  10. CE mark : CE mark

  11. Optic type outdoor : Symmetrical wide beam

  12. Constant light output : No

  13. Number of products on MCB of 16 A type B : 71

  14. Light source engine type : LED

  15. Serviceability class : Class C, luminaire without serviceable parts, not serviceable


MECHANICAL AND HOUSING

  1. Housing Material : Aluminum die cast

  2. Optical cover/lens material : Glass

  3. Fixation material : Steel

  4. Mounting device : MBA [ Mounting bracket adjustable]

  5. Optical cover/lens shape : Flat

  6. Optical cover/lens finish : Textured

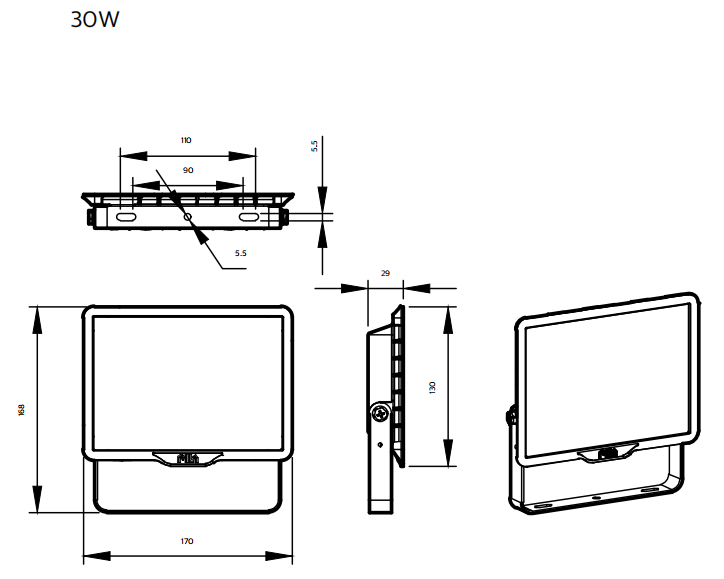

  7. Overall length : 170 mm

  8. Overall width : 130 mm

  9. Overall height : 29 mm

  10. ​Color : Black


OPERATING AND ELECTRICAL

  1. Input Voltage : 220 to 240 V

  2. Input Frequency : 50 or 60 Hz

  3. Inrush current : 1 A

  4. Inrush time 0.0111 ms

  5. ​Power Factor (Min) : 0.9


APPROVAL AND APPLICATION

  1. Ingress protection code : IP65 [ Dust penetration-protected, jet-proof]

  2. ​Mech. impact protection code : IK06 [ 1 J]

  3. Surge Protection (Common/Differential) : Surge protection level until 2 kV


CONTROLS AND DIMMING

  1. Dimmable : No


INITIAL PERFORMANCE (IEC COMPLIANT)

  1. Initial luminous flux (system flux) : 2550 lm

  2. Luminous flux tolerance : +/-10%

  3. Initial LED luminaire efficacy : 85 lm/W

  4. Init. Corr. Color Temperature : 3000K / 4000K / 6500K

  5. Init. Color Rendering Index : >80

  6. Initial chromaticity SDCM<7

  7. Initial input power : 30 W

  8. Power consumption tolerance : +/-10%


APPLICATION CONDITIONS

  1. Ambient temperature range -40 to +50 °C


PRODUCT DATA

  1. Numerator - Quantity Per Pack : 1

  2. Numerator - Packs per outer box : 16

  3. ​Net Weight (Piece) : 0.500 kg
