Technical data ~
Rated supply voltage 220 – 240 V AC
voltage range 198 – 264 V
Max. input current (at 230 V, 50 Hz,full load) 0.17 A
Leakage current (at 230 V, 50 Hz, full load) < 450 µA
Mains frequency 50 / 60 Hz
Overvoltage protection 320 V AC, 1 h
Max. output power 35 W
Output power range 10.4 – 36.5 W
Typ. efficiency (at 230 V, 50 Hz, full load) 1 92 %
λ (at 230 V, 50 Hz, full load) 1 0.95
Output current tolerance 2 ± 7.5 %
Max. output voltage (U-OUT) 320 V
THD (at 230 V, 50 Hz, full load) 1 < 20 %
Max. peak output current at full load 1 489 mA
Output LF current ripple (< 120 Hz) ± 30 %
Starting time (at 230 V, 50 Hz, full load) ≤ 0.5 s
Turn off time (at 230 V, 50 Hz, full load) ≤ 0.5 s
Hold on time at power failure (output) 20 s
Ambient temperature ta (at lifetime 50,000 h) 60 °C
Storage temperature ts -40 ... +80 °C
Mains burst capability 1 kV
Mains surge capability (between L - N) 1 kV
Mains surge capability (between L/N - PE) 2 kV
Surge voltage at output side (against PE) 3 kV
Lifetime up to 50,000 h

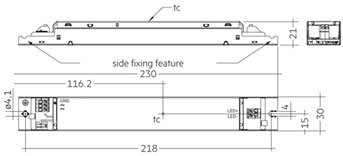

Dimensions L x W x H 230 x 30 x 21 mm
Hole spacing D 218 mm
