ElectroCraft 2 Phase Stepper Motor TPE23M-117A20-1100-X
(Nema 23, Length : 56mm, Torque 1.17Nm & Wire : 4 Leads)
TPE23 : ElectroCraft TorquePower™ Enhanced Stepper Motor
Size: Nema 23, 1.8°
Shaft Size : 8mm
Holding Torque: up to 1.17Nm
Speed: up to 25 RPS
Compact. Powerful.
The ElectroCraft Torque Power™ Enhanced Nema 23 is a high performance stepper motor incorporating creative design and manufacturing techniques to offer improved holding torque. Motors are available in both bipolar and unipolar windings with a variety of shaft configurations and encoder options to meet the needs of any application.
.jpg)
TPE23 Mechanical / Winding Data
|
TPE23 Bi-Polar Stack Size |
|
Imperial Models |
TPE23-100 |
TPE23-166 |
TPE23-294 |
|
Metric Models |
TPE23M-71 |
TPE23M-117 |
TPE23M-208 |
Holding Torque
Bi-Polar
(oz-in) |
100.0 |
166.0 |
294.0 |
Holding Torque Bi-Polar
(Ncm) |
70.61 |
117.21 |
207.59 |
Length
(inches) |
1.8 |
2.2 |
3.1 |
Length
(cm) |
4.6 |
5.6 |
7.9 |
Width
(inches) |
2.2 |
2.2 |
2.2 |
Width
(cm) |
5.6 |
5.6 |
5.6 |
Weight
(oz) |
17.0 |
24.0 |
37.0 |
Weight
(Kg) |
0.5 |
0.7 |
1.0 |
Step Angle
(°/step) |
1.8 |
1.8 |
1.8 |
|
Number Leads |
4 |
4 |
4 |
|
TPE23 Bi-Polar Windings |
|
Imperial Models |
100A10 |
100A20 |
100A30 |
166A10 |
166A20 |
166A30 |
294A10 |
294A20 |
294A30 |
|
Metric Models |
71A10 |
71A20 |
71A30 |
117A10 |
117A20 |
117A30 |
208A10 |
208A20 |
208A30 |
Current
(A/Phase) |
1.0 |
2.0 |
3.0 |
1.0 |
2.0 |
3.0 |
1.0 |
2.0 |
3.0 |
Voltage
(V/Phase) |
5.9 |
3.0 |
2.1 |
7.8 |
3.8 |
2.8 |
10.6 |
5.4 |
3.6 |
Resistance
(R/Phase) |
5.9 |
1.5 |
0.7 |
7.8 |
1.9 |
0.9 |
10.6 |
2.7 |
1.2 |
Inductance
(mH) |
19.2 |
4.8 |
2.1 |
37.0 |
9.2 |
4.1 |
57.0 |
14.2 |
6.4 |
|

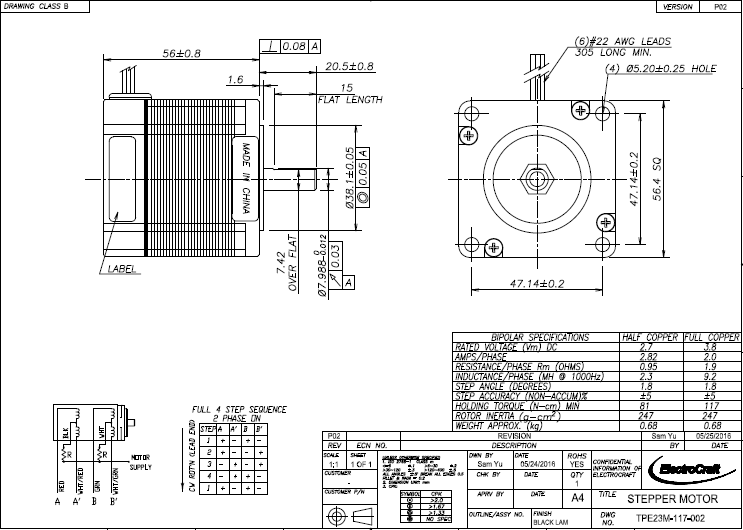

TPE23 & TPE23M Frame Size Drawing Key |
|
MOTOR TYPE |
LENGTH
(INCHES) |
LENGTH
(MM) |
|
IMPERIAL |
METRIC |
|
TPE23-100 |
TPE23M-71 |
1.75 ±.03 |
44.5 ±.8 |
|
TPE23-166 |
TPE23M-117 |
2.21 ±.03 |
56.0 ±.8 |
|
TPE23-294 |
TPE23M-208 |
3.08 ±.03 |
78.5 ±.8 |
