MEDER KSK-1A35-1015 Series Reed Switch

Category: Meder

Available

Description

DESCRIPTION

KSK-1A35 Series Reed Switch has a glass length of 10.5mm and diameter of 2.1mm. Rated power 20 W, Switching voltage 200 VDC, Switching current 1 Amp DC. UL approval, flat leads.

UL Certificate of Compliance

SPECIFICATIONS

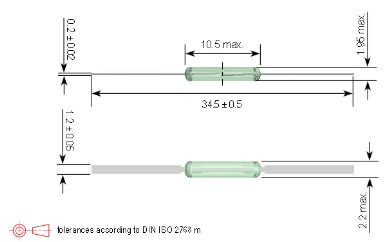

Overall Length mm (inches) 34.5 (1.358)

Glass Length Max. mm (inches) 10.5 (0.413)

Glass Dia. Max. mm (inches) 2.20 (0.086)

Lead Dia. mm (inches) 1.2 (0.047) x 0.2 (0.008)

Contact Form 1A (SPST) Normally Open (N.O.)

Pull-In Range 10-40 AT

Rated Power Max. 20W/200VDC/1 Amp DC

APPLICATIONS

General purpose, automotive, test and measurement (ATE)

Data Sheet Link:https://Data Sheet Link:standexelectronics.com/products/ksk-1a35-series-reed-switch-9/
