LED LOUVRE
SJLITE METEOR LED SAC VDU PF LINEAR LOUVRE SERIES 23W SAC B4 MMVDU PF (2X2)
SJLITE METEOR LED SAC VDU PF LINEAR LOUVRE SERIES 23W SAC B4 MMVDU PF (2X2)
E S L Lighting (M) Sdn Bhd
Category:
LED LOUVRE
Available
For more information, visit our official website at
esllighting.com.my
Visit Official Site
Contact Us
Description

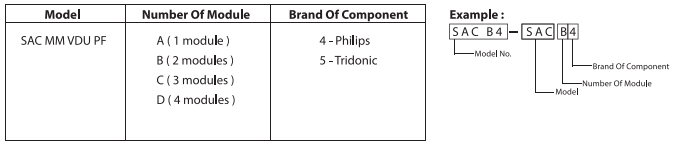

SJLITE METEOR LED SAC VDU PF LINEAR LOUVRE SERIES 23W SAC B4 MM VDU PF (2X2)
SAC B4 MM VDU PF 23W (2X2)
SAC B4 MM VDU PF 34W (2X2)
SAC D4 MM VDU PF 46W (1X4)
SAC D4 MM VDU PF 69W (1X4)
SAC D4 MM VDU PF 46W (2X4)
SAC D4 MM VDU PF 69W (2X4)
Featured
Designed for direct mount ceiling.
LED double row louvre fitting highlighting the use of a new generation of low power and high power LED as light source.
Good control of luminous with design cut off angle of 60
°
.
Glare control UGR <16.
Application
Ideal for offices, retail stores, supermarkets, schools, hotels, factories, car parks and other indoor place to use.
Electrical Data
Input Voltage (V) : 240V 50Hz
Power Factor (λ): 0.95
Product Data
Mounting: Surface/Recessed
Housing Material: Cold Roll Steel
Coating: Epoxy Polyester Powder
Light Source: T8 LED Tube
Operating Temperature: 45
°
C
Total Harmonic Distortion: <20%
Ingress Protection: IP20
Insulation Classification: Class I
Life Cycle: 30,000hrs/50,000hrs
Driver Model: CertaDrive
Light Source Model: CertaFlux
Module Dimension: 20mm x 560mm
CRI & CCT: 830/840/865
Number of Module: B (2 modules)
Brand of Component: 4-Philips
Nominal Power: 23W
Nominal Lumen Per Modules (lm) @ 25
°
C: 1550lm
Nominal System Lumen Output (lm): 1700lm
Nominal System Efficacy (lm/W): 74lm/W
Dimension (mm): 595mm x 595mm x 70mm
Optics
Diffuser Material: Polycarbonate
Diffuser Pattern: Frosted U Shape
Louvre Material: High quality anodised aluminium
Louvre Type: Specular
Control
Dimming Option: Fixed Output/Dali/1-10V

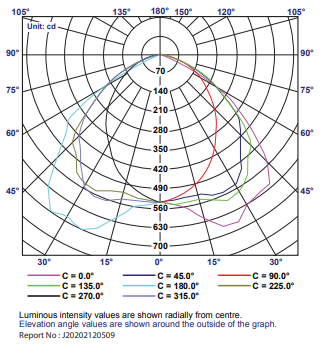

PHOTOMETRIC

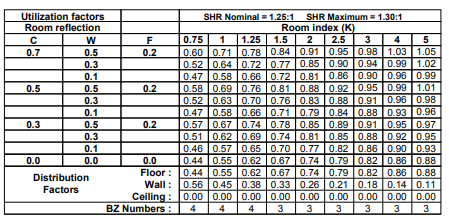

TM5 UTILIZATION FACTORS
DIMENSION
