Description
SPECIFICATIONS
Type Glass Body Reed
Circuit SPST-NC
Operate Range 15 ~ 50AT
Release Range -
Current - Switching 1A (AC/DC)
Voltage - Switching AC 1000 V
Voltage - Switching DC 1000 V
Power - Rated 100W
Operate Time 1.1 ms
Release Time 0.05 ms
Mounting Type Through Hole
Termination Style Axial

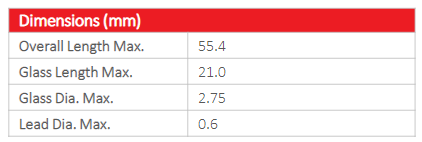

Length - Overall 2.181'' (55.40mm)
Size - Body 0.108'' Dia x 0.827'' L (2.75mm x 21.00mm)
Height Above Board -
Operating Temperature -40°C ~ 130°C
Capacitance 0.5 pF
Current - Carry 2.5A (AC/DC)
