Comark N2013 STARTERKIT | Temperature & Humidity Data Logger

SKU: 3617812

The N2013STARTERKIT comprises an N2013 Temperature and Humidity Data Logger as well as an N2000CRU Computer Docking Station.

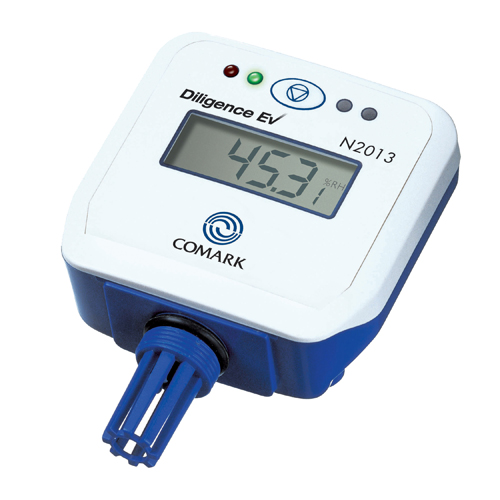

The N2013 Diligence EV Temperature and Humidity Data Logger records both temperature and humidity and is ideally suited to healthcare and building management applications.

Many products must be stored within specific temperature and humidity ranges, and the N2013 allows you to record both. Especially relevant in a healthcare environment, the data generated by the N2013 is also ideal for a range of other building operations requirements, such as building heating and cooling systems.

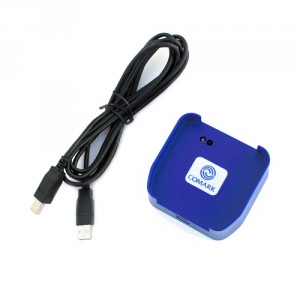

The N2000CRU Computer Docking Station is designed to work with the N2000 Diligence Series Data Loggers for syncing data between the device and your PC. It connects to your PC via a standard USB A-Type connector, and provides an Infrared (IR) link to Data Loggers placed in the cradle.

Please refer to the individual components listed above for more detailed information and specifications.

Upgraded EV Software (July 2016)

Comark is pleased to announce that its suite of Software for EVt2 and N2000 Series Data Loggers, has had a major overhaul and upgrade.
The interface has been redesigned and the software upgraded to be fully compliant with Microsoft Windows 10.

The new EV Software can be downloaded from either the ‘Support’ tab on this page, or the dedicated ‘Software’ download page. To download the software, you must have a Comark Website account.

There are two versions available EV Software and EV PRO Software for 21 CFR Applications*.

*Note: If you require the Professional version of the software and have not previously downloaded it from our website, please contact us and we’ll ensure you get the link to download it.

Technical Specifications

Name	Value
Sensor Types	Temperature: Thermistor, Humidity: Capacitive
Temperature Measurement Range	-20°C to +60°C / -4°F to +140°F
Humidity Measurement Range	Humidity 0 to 97% RH non-condensing
Scales	Temperature °C and °F, Humidity RH or DP
Display Resolution	Temperature 0.1°, Humidity 0.1% RH
System Accuracy Temperature °C	-20°C to +50°C ±0.5°C, +50°C to +60°C ±1°C
System Accuracy Temperature °F	-4°F to +122°F ±1°F, +122°F to +140°F ±2°F (typical)
System Accuracy Humidity	-20°C to +60°C ±3% RH, -4°F to +140°F ±3% RH
Memory Communications	Via infra red interface - 1 channel 16000 samples, 2 channels 8000 samples
Download Time	3 minutes for 10,000 readings (typical)
Logging Frequency	Programmable between 1 second and 99 hours
Internal Sensor Response Time	T90 = 15 to 30 minutes in ambient air
Ambient Storage	-40°C to +70°C / -40°F to +158°F
Compatibility	Software Windows™ based software for Windows XP or Vista
Battery Type	1 x AA size 3.6V replaceable lithium battery
Battery Life	Up to 5 years
Case Material	ABS
Environmental Protection	IP67 BS EN 60529 IEC 529
LED Indication	Red = Alarm, Green = Logger Active
Dimensions	Length (including fixing lug) 88mm / 3.5ins, Width 80mm / 3.1ins, Depth 35mm / 1.4ins

Documentation

Description
EV (Pro Version) Software Quick Start Guide
EV Software Quick Start Guide
EV Software – Operator Manual
N2000 Series Datasheet
Declaration of Conformity (N2013)

Downloads

Name	Version	Size	Date
EV Software	3.0.0 (Build 3)	15.35 MB	26th July 2016
