Medium VacIon Plus Pumps (20 to 75 L/s for nitrogen)

The medium VacIon Plus pumps range from pumping speeds of 20 to 75 L/s for nitrogen. These ion pumps are available with Diode, Noble Diode, and StarCell elements.

Diode Vaclon Plus pumps are regularly used in general purpose ultra high vacuum (UHV) systems for evacuating electron devices, and in sensitive electron microscopes. Noble Diode Vaclon Plus pumps are used in UHV applications when a gas mixture is being pumped at constant pressure which is ideal in obtaining UHV pressures in particle accelerators, synchrotron rings, and surface analysis applications. The patented StarCell is the only ion pump that handles high amounts of noble gases and hydrogen. It also provides the highest speed and capacity for methane, argon, and helium.

Specifications

Medium VacIon Plus Pumps Inlet Flange Element Type Pumping Speed (L/s) (saturated pump at 1-6 mbar) Nitrogen Operating Life (hours) (at 1-6 mbar) Weight Specifications
VacIon Plus 20 2 3/4'' OD CFF (NW 35) Star Cell
Noble Diode
Diode
20
22
27
80000
50000
50000
Net 7 (15)
Shipping 11(24)

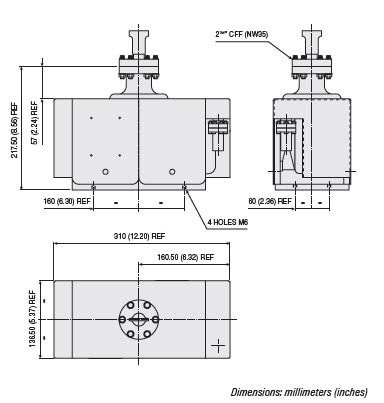

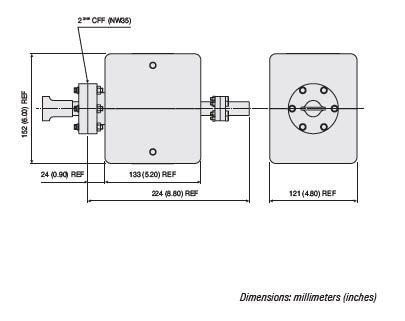

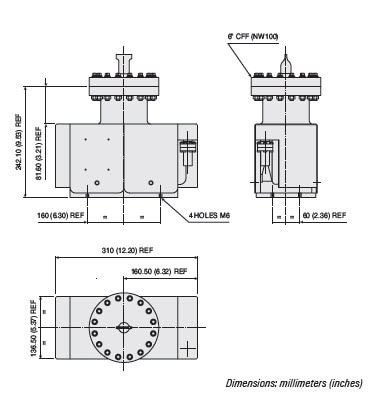

Outline drawing
X

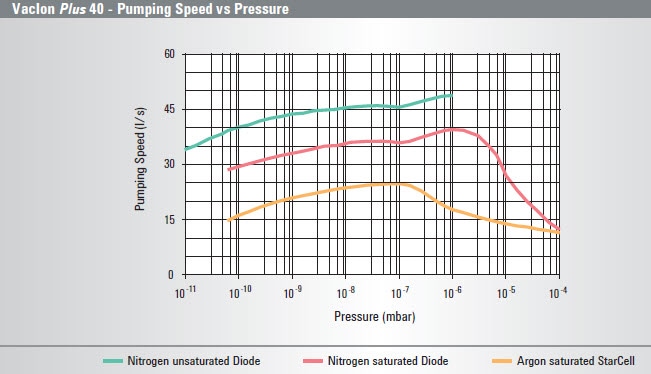

Pumping Speed Curve
X



VacIon Plus 40 2 3/4'' OD CFF (NW 35) Star Cell
Noble Diode
Diode
34
36
40
80000
50000
50000
Net 17 (37)
Shipping 21(46)
Outline drawing
X




Pumping Speed Curve
X



VacIon Plus 55 4 1/2'' OD CFF (NW 63) Star Cell
Noble Diode
Diode
50
53
55
80000
50000
50000
55
Net 18 (39)
Shipping 22(48)
Outline drawing
X




Pumping Speed Curve
X



VacIon Plus 75 6'' OD CFF (NW 35) Star Cell
Noble Diode
Diode
65
68
75
80000
50000
50000
Net 19 (42)
Shipping 23 (51)
Outline drawing
X




Pumping Speed Curve


Order Part Number

9190070 Heater, VacIon Plus 40/55/75, 220 V
9190071 Heater, VacIon Plus 40/55/75, 120 V
9191111 Heater, for 20 L/s VacIon plus 20 pump, 220 V
9191110 Heater, for 20 L/s VacIon plus 20 pump, 120 V
9595125 HV FEEDTHROUGH ON MINI CFF
9191004 Magnet assembly, ferrite, for Vacion Plus 20 L/s StarCell Pump
9290705 Cable, high-voltage, radiation resistant, with interlock, 4 m (13 ft)
9191001 Magnet assembly, ferrite, for Vacion Plus 20 L/s Diode pump
9290707 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 7 m (23 ft)
9290708 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 10 m (33 ft)
9290709 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 20 m (66 ft)
9191144 Pump, Ion StarCell, for Vaclon Plus 20, 20 L/s, without magnets
9191114 Pump, Ion Diode, for Vaclon Plus 20, 20 L/s, without magnets
9191005 Magnet Assembly VacIon Plus 20 Co/Sm
9191115 Pump, Ion Diode, for Vaclon Plus 20, 20 L/s, with ferrite magnets
9191145 Pump, Ion StarCell, for Vaclon Plus 20, 20 L/s, with ferrite magnets
9191115M2000 20 l/s Diode SHV FT
9191244 Pump, Ion StarCell, for VacIon Plus 40, 40 L/s, without magnets
9191214 Pump, Ion Diode, for VacIon Plus 40, 40 L/s, without magnets
9191145M021 20 StarCell+SHV F/T+Ferrite magnets
9191314 Pump, Ion Diode, for Vaclon Plus 55, 55 L/s, without magnets
9191210 Pump, Ion Diode, for VacIon Plus 40, 40 L/s
9191240 Pump, Ion StarCell, for VacIon Plus 40, 40 L/s
9191210M2000 40 l/s Diode SHV FT
9191145M023 20 l/s StarCell with heater 220V
9191210M012 VIP40 with internal particle shield
9191213 Pump, Ion Diode, for VacIon Plus 40, 40 L/s, with additional 2.75 inch CFF port
9191240M2000 40 l/s StarCell SHV FT
9191310 Pump, Ion Diode, for Vaclon Plus 55, 55 L/s, with magnets
9191310M2000 55 l/s Diode SHV FT
9191344 Pump, Ion StarCell, for Vaclon Plus 55, 55 L/s, without magnets
9191145M022 20 l/s StarCell with 90deg F/T
9191243 Pump, Ion StarCell, for VacIon Plus 40, 40 L/s, with additional 2.75 inch CFF port
9191310M012 VIP55 with internal particle shield
9191313 Pump, Ion Diode, for Vaclon Plus 55, 55 L/s, ewith additional 2.75 inch CFF port
9191146M014 VIP20 StarCell w 90deg FT -NdFeB magnetS
9191414 Pump, Ion Diode, for Vaclon Plus 75, 75 L/s, without magnets
9115036 VACION PLUS 25 DIODE PUMP WITH MAGN
9191340 Pump, Ion StarCell, for Vaclon Plus 55, 55 L/s
9191444 Pump, Ion StarCell, for Vaclon Plus 75, 75 L/s, without magnets
9191146 VacIon Plus 20 pump with SM-CO magnets
9191410 Pump, Ion Diode, for Vaclon Plus 75, 75 L/s
9191410M2000 75 l/s Diode SHV FT
9191343 Pump, Ion StarCell,for Vaclon Plus 55, 55 L/s, with additional 2.75 inch CFF port
9191440 Pump, Ion StarCell, for Vaclon Plus 75, 75 L/s
9191440M2000 75 l/s StarCell SHV FT
9299010 Controller, Vaclon Ion Pumps, 4UHV, 200 W negative
9299011 Controller, Vaclon Ion Pumps, 4UHV, 200 W positive
9299200 Controller, Vaclon Ion Pumps, 4UHV, two channels, 80 W negative
9299201 Controller, Vaclon Ion Pumps, 4UHV, two channels, 80 W positive
9191410M012 VIP75 with internal particle shield
9191413 Pump, Ion Diode, for Vaclon Plus 75, 75 L/s, with additional 2.75 inch CFF port
9191443 Pump, Ion StarCell, for Vaclon Plus 75, 75 L/s, with additional 2.75 inch CFF port
9191340M007 VIP55 l/s Starcell with SHV
9299210 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W negative and 1 x 200 W negative channels
9299211 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W positive and 1 x 200 W positive channels
9299020 Controller, Vaclon Ion Pumps, 4UHV, Two Channels, 200 W negative
9299021 Controller, Vaclon Ion Pumps, 4UHV, Two Channels, 200 W positive
9299212 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W positive and 1 x 200 W negative channels
9299213 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W negative and 1 x 200 W positive channels
