Mô tả

Ion Pumps
Large VacIon Plus Pumps (150 to 1000 L/s for nitrogen)


The large VacIon Plus pumps range from pumping speeds of 150 L/s to 1000 L/s for nitrogen. These pumps are available with Diode, Noble Diode, and StarCell elements.

Diode Vaclon Plus pumps are regularly used in general purpose ultra high vacuum (UHV) systems for evacuating electron devices, and in sensitive electron microscopes. Noble Diode Vaclon Plus pumps are used in UHV applications when a gas mixture is being pumped at constant pressure making it ideal to obtain UHV pressures in particle accelerators, synchrotron rings, and surface analysis applications. The patented StarCell is the only ion pump that handles high amounts of noble gases and hydrogen. It also provides the highest speed and capacity for methane, argon, and helium.



Specifications


Large VacIon Plus Pumps Inlet Flange Element Type Pumping Speed (L/s) (saturated pump at 1-6 mbar) Nitrogen Operating Life (hours) (at 1-6 mbar) Weight Specifications
VacIon Plus 150*

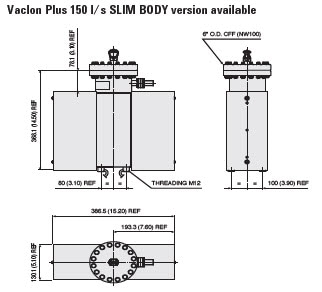

(VacIon Plus ''Slim Body'' available)
X



 6'' OD CFF (NW 100) Star Cell
Noble Diode
Diode		 125
135
150		 80000
50000
50000		 Net 43 (94)

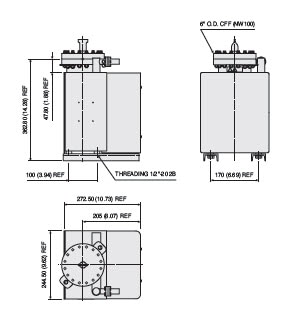

Shipping 53 (110)		 Outline drawing
X

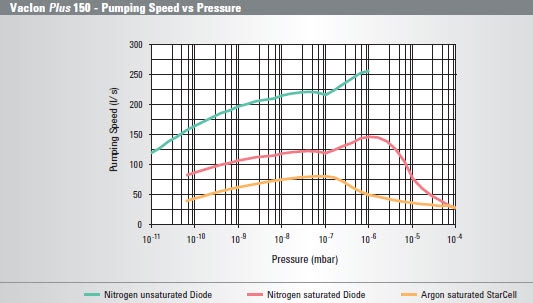

Pumping Speed Curve
X




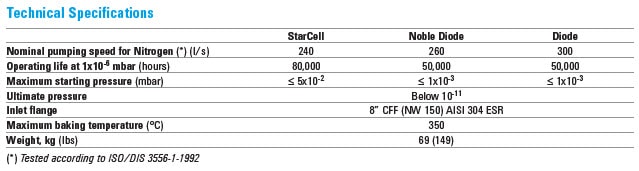

Technical Specifications
X


VacIon Plus 200 8'' CFF (NW 160) Star Cell
Noble Diode
Diode		 180
185
200		 80000
50000
50000		 Net 51 (112)
Net 45 (99)
Net 45 (99)		 Outline drawing
X




Pumping Speed Curve
X




Technical Specifications
X


VacIon Plus 300 8'' OD CFF (NW 150) Star Cell
Noble Diode
Diode		 240
260
300		 80000
50000
50000		 Net 69 (149)
Shipping 84 (185)		 Outline drawing
X

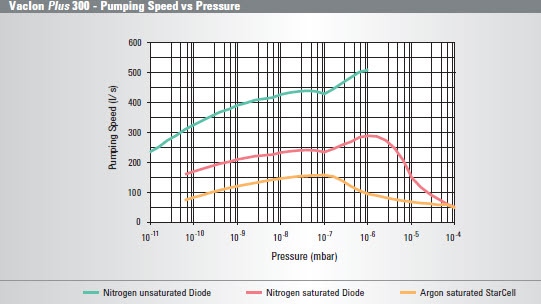

Pumping Speed Curve
X




Technical Specifications
X


VacIon Plus 500 8'' OD CFF (NW 150) Star Cell
Noble Diode
Diode		 410
440
500		 80000
50000
50000		 Net 120 (264)
Shipping 135 (297)		 Outline drawing
X

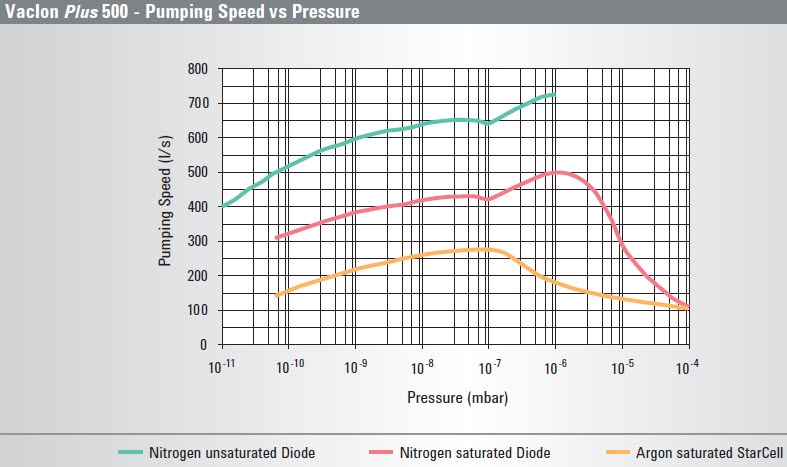

Pumping Speed Curve
X




Technical Specifications
X


VacIon Plus 1000 12'' CFF (NW 250) Noble Diode
Diode		 800
1000		 80000
50000		 Net 265 (585)
without heaters		 Outline drawing
X

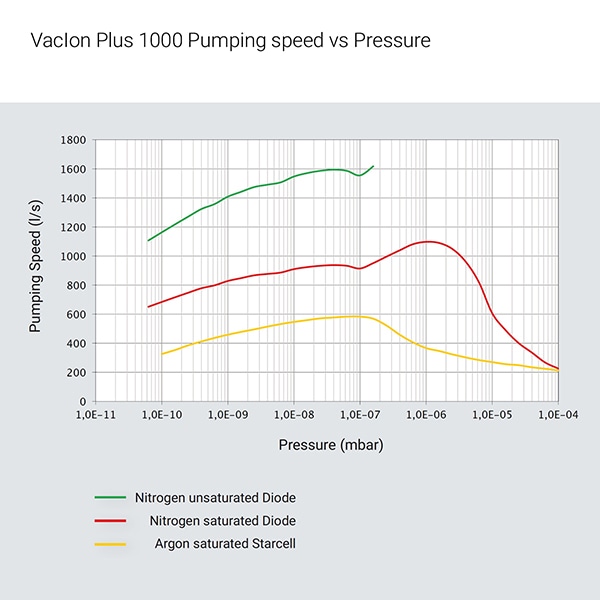

Pumping Speed Curve
X




Technical Specifications
Download large VacIon Plus pumps 3D Models


Ordering Information

Configurations                                                                                 Part Numbers

VIP1000 Diode without heater                                                        X3604-64000
VIP1000 Diode with 115 V heater                                                  X3604-64101
VIP1000 Diode with 230 V heater                                                  X3604-64102
VIP1000 StarCell without heater                                                    X3604-64120
VIP1000 StarCell with 115 V heater                                               X3604-64121
VIP1000 StarCell with 230 V heater                                               X3604-64122
The VIP1000 can be driven by the 4UHV controller with the configuration
with 200 Watts.

Controller Unit: 4UHV                                                                     Part Numbers
200W NEG                                                                                        9299010
200W POS                                                                                        9299011
The selection of the controller is strictly dependent on the starting pressure.
If starting pressure is in the 10-6 mbar range, a single channel with 200 Watts is
sufficient to start and maintain the operational function of the pump.
If starting pressure is above 10-6 mbar range, please contact your Agilent
representative.

Cables selection                                                                              Part Numbers
Pumps are equipped with standard Fischer high voltage feedthroughs.
Cable lengths available:
4 m Fischer cable                                                                              9290705
7 m Fischer cable                                                                              9290707
10 m Fischer cable                                                                            9290708
20 m Fischer cable                                                                            9290709


Literature

Agilent 4UHV Ion Pump Controller Brochure

4UHV Ion Pump Controller overview: features and benefits, technical specifications, ordering information, frequently asked questions.


Agilent Ion Pump 200 Brochure

The first ion pump with maximum pumping speed at low pressure

Agilent Ion Pumps Catalog

Catalog of Agilent Ion Pumps. Complete model listing with specifications, drawings, pictures, ordering information and applications.


VacIon Plus 1000 Data Sheet

Technical specifications, features and ordering information for VacIon Plus 1000


Ion Pumps History

60 years of history - Agilent Ion Pumps: the invention that made UHV possible


Agilent and DESY Collaboration Creates a New Kind of Ion Getter Pump - Case Study

Collaboration between Agilent and DESY creates the groundbreaking in-line ion pump.


Frequently Asked Questions (FAQs) Ion Pumps

Find the answers to frequently asked questions about Agilent’s ion pumps. FAQs about ion pump operation and best practices, ion pump controllers, titanium sublimation pumps (TSP).


Order Part Number

9290705 Cable, high-voltage, radiation resistant, with interlock, 4 m (13 ft)
9290707 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 7 m (23 ft)
X3601-68002 VIP200 StarCell element replacement KIT
9290708 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 10 m (33 ft)
9199040 Pumping element, Diode, for VacIon Plus 150/300/500
9199030 Pumping element, StarCell, for VacIon Plus 150/300/500
X3601-68004 VIP200 Heater 220V
X3601-68003 VIP200 Heater 110V
9290709 Cable, high-voltage, radiation resistant, with interlock for any Vaclon Plus pump, 20 m (66 ft)
9190072 Heater, VacIon Plus 150, 220 V
9190073 Heater, VacIon Plus 150, 120 V
X3601-68008 VIP200 Heater 220V for side port version
X3601-68007 VIP200 Heater 110V for side port version
9190074 Heater, VacIon Plus 300, 220 V
9190075 Heater, VacIon Plus 300, 120 V
X3601-68000 VIP200 Diode element replacement KIT
9199045 Pumping element, Noble Diode, for VacIon Plus 150/300/500
9190076 Heater, VacIon Plus 500, 220 V
9190077 Heater, VacIon Plus 500, 120 V
9299011 Controller, Vaclon Ion Pumps, 4UHV, 200 W positive
9299010 Controller, Vaclon Ion Pumps, 4UHV, 200 W negative
9299201 Controller, Vaclon Ion Pumps, 4UHV, two channels, 80 W positive
9299200 Controller, Vaclon Ion Pumps, 4UHV, two channels, 80 W negative
9191510M2000 150 DIODE SHV FT
9191510 Pump, Ion Diode, for VacIon Plus 150, 150 L/s
9299211 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W positive and 1 x 200 W positive channels
9299210 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W negative and 1 x 200 W negative channels
9191540 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s
9191540M2012 150 StarCell slim body SHV FT
9191540M2000 150 StarCell SHV FT
X3601-64000 VIP200, diode
9191550 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, double-ended
9299021 Controller, Vaclon Ion Pumps, 4UHV, Two Channels, 200 W positive
9299020 Controller, Vaclon Ion Pumps, 4UHV, Two Channels, 200 W negative
X3601-64012 VIP200, diode, F/T SHV
9299213 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W negative and 1 x 200 W positive channels
9299212 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W positive and 1 x 200 W negative channels
9191580 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, double-ended
X3601-64001 VIP200, diode, side port
9299400 Controller, Vaclon Ion Pumps, 4UHV, 4 x 80 W negative channels
9299401 Controller, Vaclon Ion Pumps, 4UHV, 4 x 80 W positive channels
X3601-64013 VIP200, diode, F/T SHV, side port
9191511M2000 150 Diode SHV FT 120V HT
9191512 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, with heaters 220 V
9191511 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, with heaters 120 V
X3601-64040 VIP200, StarCell
9299022 Controller, Vaclon Ion Pumps, 4UHV, 200 W negative and 200 W positive channels
9191541 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, with heaters 120 V
9191542 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, with heaters 220 V
9191541M2000 150 StarCell SHV FT 120V HT
X3601-64052
 VIP200, StarCell, F/T SHV
X3601-64041 VIP200, StarCell, side port
X3601-64002 VIP200, diode, with heater 110 V
X3601-64004 VIP200, diode, with heater 220 V
9299402 Controller, Vaclon Ion Pumps, 4UHV, 2 x 80 W positive and 2 x 80 W negative channels
9191552 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, double-ended, with heaters 120 V
9191551 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, double-ended, with heaters 120 V
X3601-64016 VIP200, diode, F/T SHV, with heater 220 V
X3601-64014 VIP200, diode, F/T SHV, with heater 110 V
9191581 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, double-ended, with heaters 120 V
9191582 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, double-ended, with heaters 220 V
X3601-64005 VIP200, diode, with heater 220 V, side port
X3601-64003 VIP200, diode, with heater 110 V, side port
X3601-64053 VIP200, StarCell, F/T SHV, side port
X3601-64017 VIP200, diode, SHV, with heater 220 V, side port
X3601-64015 VIP200, diode, SHV, with heater 110 V, side port
9191510M004 VacIon Plus 150, Diode pump, slim body, without heaters
9191540M012 VacIon Plus 150, StarCell pump, slim body, without heaters
X3601-64042 VIP200, StarCell, with heater 110 V
X3601-64044 VIP200, StarCell, with heater 220 V
X3601-64018 VIP200, noble diode
9191610 Pump, Ion Diode, for VacIon Plus 300, 300 L/s
X3601-64056 VIP200, StarCell, F/T SHV, with heater 220 V
X3601-64054 VIP200, StarCell, F/T SHV, with heater 110 V
X3601-64045 VIP200, StarCell, with heater 220 V, side port
X3601-64043 VIP200, StarCell, with heater 110 V, side port
X3601-64030 VIP200, noble diode, F/T SHV
9191512M008 VIP 150 DIODE PUMP W/HEATERS INST. 220V
X3601-64019 VIP200, noble diode, side port
9191640 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s
9191640M2000 300 l/s StarCell SHV FT
9191640M012 VIP 300 l/s StarCell with old style FT
X3601-64057 VIP200, StarCell, F/T SHV, 220 V, side port
X3601-64055 VIP200, StarCell, F/T SHV, 110 V, side port
X3601-64031 VIP200, noble diode, F/T SHV, side port
9191542M010 VacIon Plus 150, StarCell pump, slim body, with heaters, 220 V
9191541M003 VacIon Plus 150, StarCell pump, slim body, with heaters, 120 V
9191610M2000 300 l/s Diode SHV FT
9191512M013 VIP 150 Diode pump w/heaters inst. 220V
9191511M003 VacIon Plus 150, Diode pump, slim body, with heaters, 120 V
9191650 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, double-ended
9191680 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, double-ended
9191611 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with heaters 120 V
9191612 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with heaters 220 V
9191611M2000 300 l/s Diode SHV FT 120V HT
X3601-64020 VIP200, noble diode, with heater 110 V
X3601-64022 VIP200, noble diode, with heater 220 V
9191641 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with heaters 120 V
9191642 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with heaters 220 V
9191641M2000 300 l/s StarCell SHV FT 120V HT
X3601-64034 VIP200, noble diode, F/T SHV, with heater 220V
X3601-64032 VIP200, noble diode, F/T SHV, with heater 110V
X3601-64023 VIP200, noble diode, with heater 220 V, side port
X3601-64021 VIP200, noble diode, with heater 110 V, side port
9191651 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, double-ended, with heaters 120 V
9191652 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, double-ended, with heaters 220 V
X3601-64035 VIP200, noble diode, SHV, 220V, side port
X3601-64033 VIP200, noble diode, SHV, 110V, side port
9191681 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, double-ended, with heaters 120 V
9191682 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, double-ended, with heaters 220 V
9192641M009 300 StarCell Combi 220V w/o CRYO-TPS
9191710 Pump, Ion Diode, for VacIon Plus 500, 500 L/s
9191710M2000 500 l/s Diode SHV FT
9191740M2000 500 l/s StarCell SHV FT
9191740 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s
9192541 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
9192510 Pump, Ion Diode, for Vaclon Plus 150, 150 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9192511 Pump, Ion Diode, for VacIon Plus 150, 150 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
9191750 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, double-ended
9191780 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, double-ended
9192540 Pump, Ion StarCell, for VacIon Plus 150, 150 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9191712 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with heaters 220 V
9191711 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with heaters 120 V
9191711M2000 500 l/s Diode SHV FT 120V HT
9191741M2000 500 l/s StarCell SHV FT 120V HT
9191741 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with heaters 120 V
9191742 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with heaters 220 V
9192642 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 120 V
9192643 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 220 V
9191751 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, double-ended, with heaters 120 V
9191752 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, double-ended, with heaters 220 V
9192611 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
9191781 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, double-ended, with heaters 120 V
9191782 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, double-ended, with heaters 220 V
9192613 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 220 V
9192612 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 120 V
9192610 Pump, Ion Diode, for VacIon Plus 300, 300 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9192741M011 500 l/s StarCell,short neck-side port
9192741M010 StarCell 500
9192641 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
9192640 Pump, Ion StarCell, for VacIon Plus 300, 300 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9192713 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 220 V
9192712 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 120 V
9192711 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
9192710 Pump, Ion Diode, for VacIon Plus 500, 500 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9192743 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 220 V
9192740 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 120 V
9192742 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with bottom-mounted cryopanel, TSP cartridge, installed heater 120 V
9192741 Pump, Ion StarCell, for VacIon Plus 500, 500 L/s, with side-mounted cryopanel, TSP cartridge, installed heater 220 V
X3604-64000 VIP1000 Diode without heater installed
X3604-64120 VacIon Plus 1000 pump, StarCell
X3604-64102 VacIon Plus 1000 pump, Diode, with heater installed, 230 V
X3604-64101 VacIon Plus 1000 pump, Diode, with heater installed, 115 V
X3604-64121 VacIon Plus 1000 pump, StarCell, with heater installed, 115 V
X3604-64122 VacIon Plus 1000 pump, StarCell, with heater installed, 230 V



Xem thêm chi tiết về Hexo Industries (M) Sdn Bhd
Hexo Industries (M) Sdn Bhd
Hexo Industries (M) Sdn Bhd Measuring Instruments Supplier Malaysia, Leak Detection Systems Supply Penang, Power Tools Supplies Singapore, Indonesia ~ Hexo Industries (M) Sdn Bhd
Liên hệ với chúng tôi flagMalaysia
