Get fast, reliable dye-sub printing right out of the box with the 24'' SureColor F530. Ideal for personalizing awards, mugs, mousepads and more, this high-performance dye-sublimation printer delivers professional-quality prints using powerful PrecisionCore® technology. A truly turnkey solution, the SureColor F530 arrives with a host of convenient features to streamline workflow, including specialized transfer paper for both rigid and soft media, a 50-sheet auto-feed tray and built-in cutter, and drivers for both Windows® and Mac®. Plus, with its remarkably compact, space-saving design, you can maximize workshop space.
.jpg)
.jpg)
Epson strongly recommends the use of genuine ink to ensure optimal print quality and performance.*
.png)
Print:
Printing Technology:
PrecisionCore MicroTFP 4-channel, drop-on-demand printhead
Minimum Ink Droplet Size:
Variable Droplet Technology can produce up to three different sizes per line
Maximum Print Resolution:
2400 x 1200 dpi
Nozzle Configuration:
Color and monochrome heads; 800 nozzles x 4 channels
Ink:
Ink Type:
Ink Bottles 140mL
Replacement Ink:
Black Ink Bottle T49M120
Cyan Ink Bottle T49M220
Magenta Ink Bottle T49M320
Yellow Ink Bottle T49M420
General:
Operating Systems:
macOS® 10.13.x, Mac® OS X® 10.12.x, 10.11.x, 10.10.x, 10.9.x, 10.8.x and 10.7.x Windows® 10, 8.1, 7 (32-bit, 64-bit), Windows Vista® and Windows XP8
Temperature:
Operating: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)
Operating (Recommended): 65 ˚ to 75 ˚F (18 ˚ to 24 ˚C)
Storage: -4 ˚ to 104 ˚F (-20 ˚ to 40 ˚C)
Humidity:
Operating: 20–80% (no condensation)
Operating (Recommended): 45–60% (no condensation)
Storage: 5–85% (no condensation)
Sound Level:
Operating: Approx 50 dB(A)
Sleep: Approx 32 dB(A)
Dimensions:

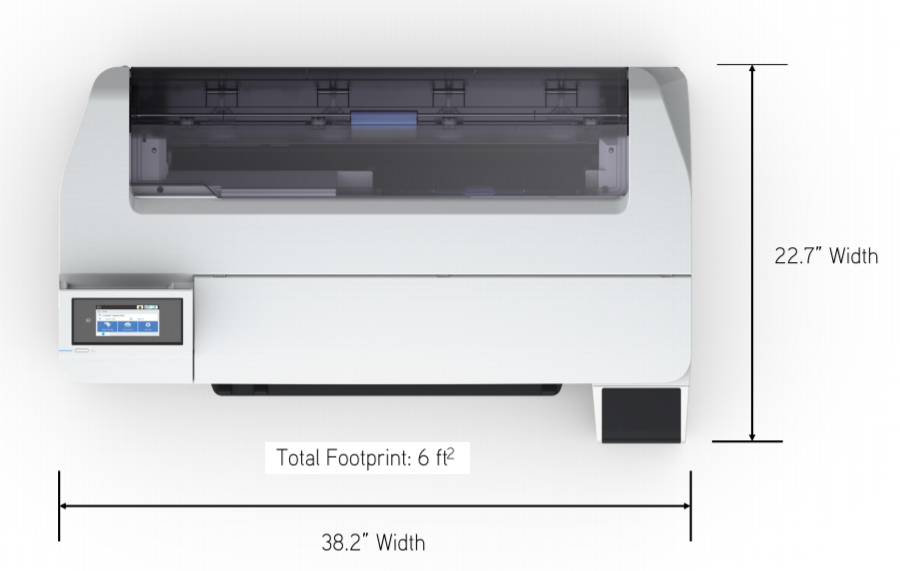

Without Stand: 38.2'' x 20.7'' x 9.6'' (970 x 505 x 230 mm)
Weight:
Without Stand: 84 lb (38 kg)
Eco Features:
ENERGY STAR® qualified
RoHS compliant
Recyclable product9
Safety Approvals:
UL (MET), FCC (Class A), CSA, CE, EMC
Country of Origin:
Indonesia
Warranty:
Standard 2-year usually next-business day on-site repair with toll-free phone support Monday through Friday
Printable Area and Accuracy:
Maximum Paper Width:
24.4''
Minimum Cut-sheet Size:
8.27 x 11 (1 sheet and ASF)
Minimum Paper Width:
Roll: 13''/Sheet: 8.27''
Maximum Printable Length:
Limited by application, OS and driver/RIP used7
Sheet Media Handling:
Sheet Loading:
Auto Sheet Feeder, up to 11.7'' wide
Single Sheet, Top-loading:
Up to 24.4'' wide
Left/Right Margins:
3 mm each (0.24'' total)
Roll Media Handling:
Single Roll-to-Roll / Top-loading Roll:
Up to 24.4'' wide
Media Core:
2” User-adjustable roll media adapters
Maximum Roll Diameter:
Up to 4.3''
Media Thickness:
Up to 8.6 mil
Roll Cutting:
High-speed internal rotary cutter; auto or manual6
Roll Paper Remaining:
The amount of remaining paper can be controlled from the control panel
Printer Details:
Display:
4.3'' Touchscreen
Printer Language:
ESC/P raster
Interfaces:
SuperSpeed USB (compatible with USB 3.0 specification), Wireless LAN IEEE (802.11 b/g/n)4, Wired Ethernet (1000 Base-T/100 Base-TX/10 Base-T), Wi-Fi Direct4
Power:
Rated Voltage:
AC 110–240 V
Rated Frequency:
50–60 Hz
Power Consumption:
Printing: Approx. 22 W
Ready: Approx. 8 W
Sleep: approx. 1.6 W
Power Off (Stand By): 0.2 W
Rated Current:
1.4 A
