SPECIFICATIONS
Type Parameter
Mounting Type PCB Mount

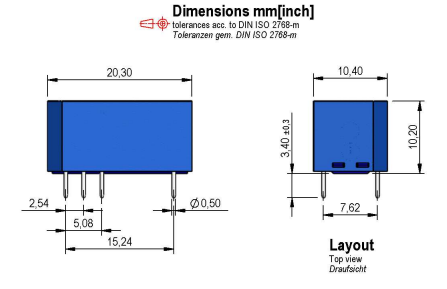

Dimensions 20.1 x 10.2 x 10.2mm
Maximum Operating Temperature +70°C
Minimum Operating Temperature -20°C
Maximum Switched Current 500 mA
Subcategory Relays
Depth 10.2mm
Contact Resistance 150 mΩ
Number of Poles 2
Terminal Type Through Hole
Operating Temperature Range -20 → +70°C
Coil Resistance 680Ω
Coil Voltage 12V dc
Coil Power 210mW
Contact Configuration DPDT
Height 10.2mm
Length 20.1mm
