KOCOM OUTDOOR UNIT
DP-DS2D & DP-DS4M

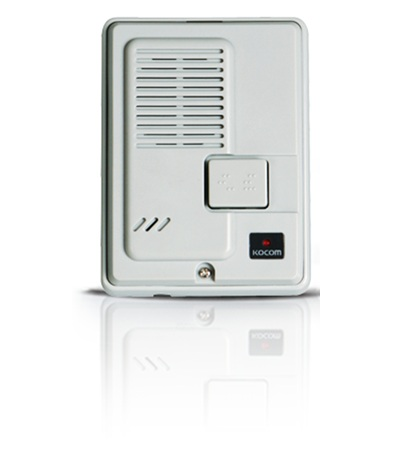

DP-DS2D
Outdoor Unit
- Power-AC110V or AC220V (±10%) or DC 6V ~ DC 9V (Powered from doorphone)
- Power Consumption-Max.150mA
- Wiring & Call Sounds-Door: 2 wires, Chime,
Audio Handset: 5 wires, Melody Max
- Wiring Distance-Ø0.65 Single Cable : 300m,
5C-2V Coaxial Cable : 500m
- Power from of Interphone/Doorphone
- 2 Wiring non-polar
- 99(W) X 131(H) X30(D) Dimension (mm)
- Surface mount Type
DP-DS4M
~ Outdoor Unit Fot Multiple Intercom unit (KIP-605,KIP-611)
~ DC24V/ 1.2A (power from interphone)
~ Un Load, 0.3W In Load: 1.0W Consumption
~ 4 Wired parallel (voice, calling, power, GND)
~ Range: TIV 0.6 (1Km) (when additional DC 24V adaptor is installed)
|
Power |
DC 6V ~ DC 9V (Powered from doorphone) |
|
Power consumption |
1.5W(MAX.) |
|
Speak Mode |
Hands-free Type |
|
Wiring |
2 Wire |
|
Mount Type |
Surface Mount |
|
Dimension |
99(W) x 131(H) x 30(D) mm |
