The TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn is a range of stainless steel (SS303) viscosity cups with fixed stainless steel inner cavity nozzle and handle. Ideal for measuring coatings and other fluids during application or production.
Features:
-
Each cup has a long handle to allow the cup to be dipped by hand into a liquid container, which makes it easy to quickly check and adjust the viscosity of many different type of liquids.
-
The design of the cup and orifice eliminate hard to clean recesses.
-
TQC viscosity cups are made under the continuing quality control procedures.
-
Each cup is provided with an engraved unique serial number.
Specifications:
|
Cup |
Stainless steel, 44.0 cm³ |
|
Nozzle |
Stainless steel, fixed |
|
Handle |
Stainless steel |
|
Complies with |
ASTM D 1084, ASTM D 4212 |
|
Weight |
135 – 137 g * |
|
Cup width |
36mm |
|
Cup height |
62.5mm |
|
Max width |
50mm |
|
Total height |
330mm |
*(depending on orifice)

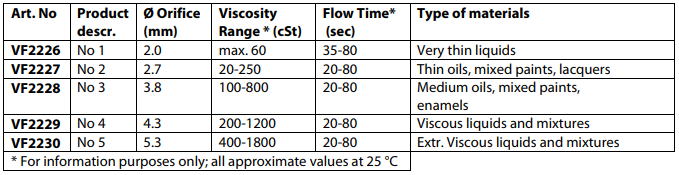

ORDERING INFORMATION
Art. No. VF2226
TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn
Type: made of stainless steel, with fixed stainless steel nozzle, orifice No. 1
Optional: possible to certify by calibration with certified oils
Art. No. VF2227
TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn
Type: made of stainless steel, with fixed stainless steel nozzle, orifice No. 2
Optional: possible to certify by calibration with certified oils
Art. No. VF2228
TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn
Type: made of stainless steel, with fixed stainless steel nozzle, orifice No. 3
Optional: possible to certify by calibration with certified oils
Art. No. VF2229
TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn
Type: made of stainless steel, with fixed stainless steel nozzle, orifice No. 4
Optional: possible to certify by calibration with certified oils
Art. No. VF2230
TQC Viscosity Cup ASTM D1084 D4212 Immersion Zahn
Type: made of stainless steel, with fixed stainless steel nozzle, orifice No. 5
Optional: possible to certify by calibration with certified oils
