Our Cyclic Salt Spray Corrosion Chambers (CCT Chambers) are designed to simulate real-world environmental conditions to accelerate corrosion testing. These chambers expose test samples to a repeated cycle of salt spray, humidity, and temperature to evaluate corrosion resistance.
Compliant with international test standards such as ASTM B117, ASTM G85, ISO 9227, IEC 60068-2-52, and ISO 7253, these chambers are ideal for automotive, aerospace, electronics, and materials industries.
Programmable Touchscreen Controller with RS232 & PC Link interface
Cyclic Testing Conditions: Temperature, humidity, and salt spray cycles
Pneumatic Cover: Easy and safe opening/closing
Corrosion-Resistant Material: Built with long-lasting, high-strength fiberglass
Automatic Operation: Runs continuously for long-term tests
Ethernet Access: Remote monitoring and control
| Model | SC-010 | SC-016 | SC-020 | ||
| Internal dimensions (mm) | 770*1430*700 | 800*1900*850 | 850*2250*850 | ||
| Overall dimensions (mm) | 1450*2520*1620 | 1350*3000*1700 | 1650*3200*1700 | ||
| Temperature range | 10℃～90℃ | ||||
| Humidity range | 30% ~ 98% RH | ||||
| Temperature tolerance | +/- 2.0 ℃ | ||||
| Humidity tolerance | +2%，-3% | ||||
| Salt concentration tolerance | ±1% | ||||
| Spray deposition | 1～2ml / 80cm2 · h | ||||
| Temperature Controller | Programmable color display touch screen controller& Interface R232& PC Link | ||||
| Temperature sensor | Platinum resistance. PT100!& / MV A-class | ||||
| Humidity sensor | dry and wet bulb sensor | ||||
| Interior /Exterior material | Glass fiber reinforced plastics; (corrosion resistance, Anti-aging, high strength) | ||||
| Power Supply | 380V 50HZ Three-phase five little system | ||||
| Test standard | IEC60068-2-52, IEC61701-2， ASTM G85，ISO 7253 | ||||

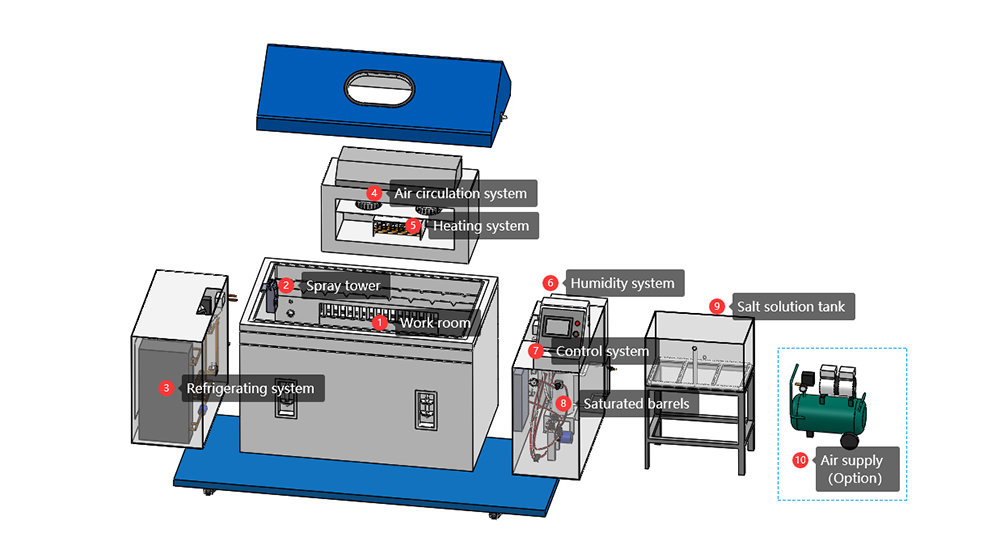

Configuration of ASTM G85 Salt Spray Chamber
Key Features
Combined Environmental Simulation
Allows programmable cycles of salt fog, temperature variation, and humidity—enabling accurate reproduction of harsh real-life environments.
Advanced Touchscreen Controller
Features a user-friendly interface with programmable test sequences, Ethernet access, and PC integration for efficient monitoring and data recording.
Durable Construction
Made with glass fiber reinforced plastics, offering superior resistance to corrosion, impact, and aging—ensuring long service life in demanding test labs.
Convenient Pneumatic Cover
The pneumatically operated lid enables smooth, effortless chamber opening and closing, improving usability and safety during test cycles.
Applications
Automotive parts and components
Industrial coatings and surface treatments
Marine and offshore materials
Electronics and electrical housings
Product R&D and quality assurance
Available in Multiple Sizes
Choose from a range of chamber capacities to suit your test volume and configuration requirements.
Get More Information
Ready to improve your product testing accuracy and efficiency?
Contact Redmark Industry for technical support, pricing, or a product demonstration tailored to your need
