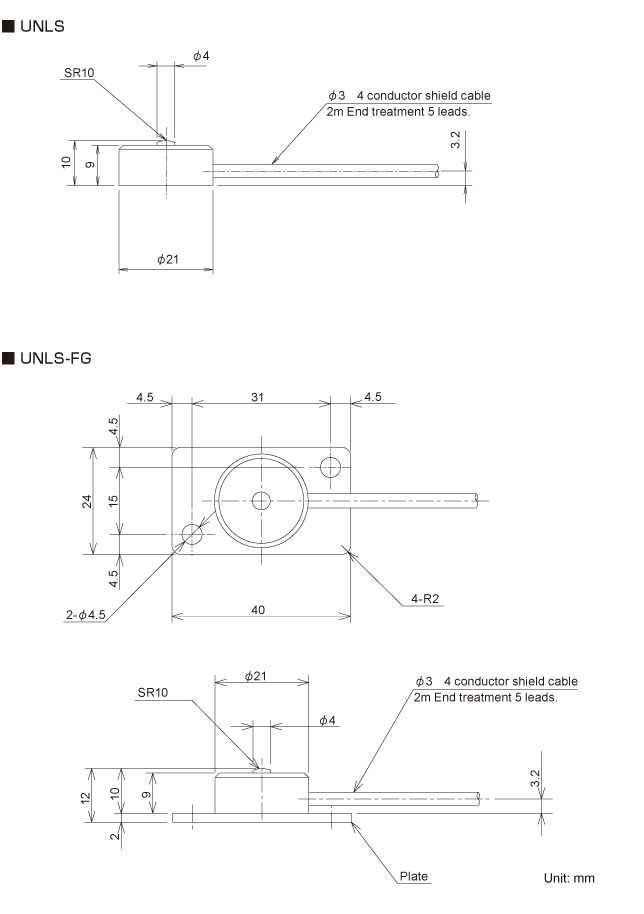

Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
● Capacity 100 N / 200 N / 500 N / 1 kN / 2 kN / 5 kN
● Construction material: Stainless steel
● Compact compression type loadcell with a diameter of 21 mm and a height of 10 mm
● UNLS-FG: W/ plate for screw fastening
| Model | UNLS-100N, UNLS-200N,UNLS-500N,UNLS-1KN,UNLS-2KN, UNLS-5KN, | UNLS-100N-FG, UNLS-200N-FG, UNLS-500N-FG,UNLS-1KN-FG,UNLS-2KN-FG,UNLS-5KN-FG | |
|---|---|---|---|
| Rated capacity | 100, 200, 500, 1k, 2k, 5k | N | |
| Rated output | 1±20% | mV/V | |
| Safe overload | 150 | %R.C. | |
| Zero balance | ±10 | %R.O. | |
| Non-linearity | 0.5 | 1.0 | %R.O. |
| Hysteresis | 0.3 | 0.5 | %R.O. |
| Repeatability | 1.0 | 1.0 | %R.O. |
| Compensated temperature range | 0 to +50 | ℃ | |
| Safe temperature range | 0 to +60 | ℃ | |
| Temperature effect on zero | 0.5 | %R.O./10℃ | |
| Temperature effect on span | 0.5 | %R.O./10℃ | |
| Input resistance | Approx.350 | Ω | |
| Output resistance | Approx.350 | Ω | |
| Recommended excitation voltage | 2.5 | V | |
| Maximum excitation voltage | 5 | V | |
| Insulation resistance (DC50V) | 1000 or more | MΩ | |
| Cable |
φ3 4-conductor color shield cable. Length 2m. End treatment 5-leads. |
||
| Cable color code |
＋EXC: Red ＋SIG: Green －EXC: White －SIG: Black SHIELD: Yellow |
||
| Loadcell material | Stainless steel | ||
| Deflection at rated |
100N：0.015 200N：0.015 500N：0.020 1kN: 0.020 2kN: 0.025 5kN: 0.040 |
mm | |
| Natural frequency |
100N：35 200N：47 500N：60 1kN: 85 2kN: 98 5kN: 102 |
kHz | |
| Weight |
100N: 20, 100N-FG: 35 200N: 20, 200N-FG: 35 500N: 20, 500N-FG: 35 1kN: 20, 1kN-FG: 35 2kN: 20, 2kN-FG: 35 5kN: 20, 5kN-FG: 35 |
g | |
|
