Wrap Around Case Packer

Wrap Around Case Packer

Wrap around case packer is a piece of packaging equipment which automatically packed products into cases from a flat cardboard and some bottles. It can pack  containers in different materials such as PET bottles or glass bottles, and different shapes such as round, square, oval, triangle etc.

Advantages :
1. Low investment, quick return
2. Advanced device laypout
3. International general accessories
4. Lower waste, higher productivity
5. Easy operation, rapid replacement
6. User friendly interface
7. Complete after-sales service

Working Principle First, the feeding chain send products to bottle grouping area where they be arranged in order for being packed. Second, the flat cardboards are put into grouped products after being conveyed to the Synchronous transmission area. Finally, cardboards and products are conveyed together for the rest steps to be packed and sealed.

Model 1 2 3 4
Capacity (packs/min.) 18 35 45 60
Bottle Grouping Cylinder-pushing Single Stop Lever Servo-Type Servo-Type
Dimension (mm) 5580*2640*1700 11600*2000*2650 11600*2000*2650 15000*5000*2650
Feeding Belt Lenght 2150 3620 3620 3620
Min.Carton Size 200*160*70mm  200*170*70mm 200*170*90mm 200*170*90mm
Max.Carton Size 400*300*300 mm 480*300*300 mm 480*300*300 mm 480*300*300 mm
Bottle Diameter 55 ~ 100 mm 55 ~ 100 mm 55~ 100 mm 55 ~ 100 mm
Bottle Height  70 ~ 300 mm  90 ~ 300 mm 90 ~ 300 mm 90 ~ 300 mm

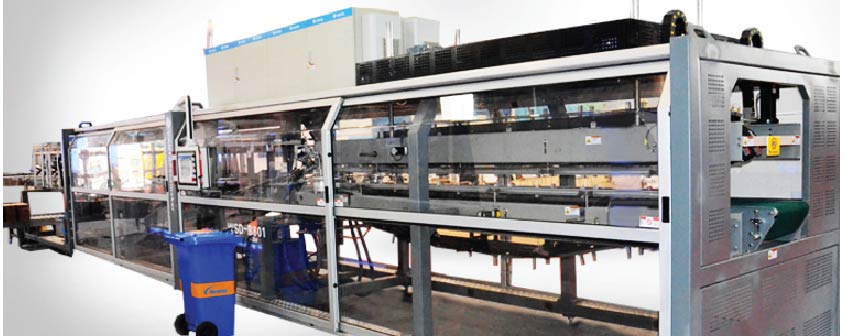

Wrap Around Case  Packer (MZB Series)


Wrap Around Case Packer is a full automatic machine to pack bottles, cans and jars into cartons. It keeps stablility in continuous linear operation and fits medium and high speed production line.

Model 1 2 3
Capacity (packs / min) 45 60 80
Bottle Grouping Mode Servo - Type Servo - Type Servo - Type
Dimension 11600 * 2000 * 2650 mm 15000 * 5000 * 2650 mm 16000*5000*2650mm
Feeding Belt Length 3620 mm 3620 mm 3620 mm
Min.Carton Size 200*170*90 mm  200*170*90 mm 200*170*90 mm
Max.Carton Size 480*300*300mm 480*300*300 mm 480*300*300 mm
Bottle Diameter  55 ~ 100 mm  55~ 100 mm 55 ~ 100 mm
Bottle Height  90 ~ 300 mm  90 ~ 300 mm  90 ~ 300 mm

Technical Advantages :

1. Low investment, quick return
2. Advanced device laypout
3. International general accessories
4. Lower waste, higher productivity
5. Easy operation, rapid replacement
6. User friendly interface
7. Complete after-sales service

Application : Be widely used in packaging fragile containers such as beer bottles and soft PET bottles.


Wrap Around Case  Packer (DB Series)

Wrap Around Case Packer is a full automatic machine to pack bottles, cans and jars into cartons. It keeps stablility in continuous linear operation and fits medium and high speed production line.

Model 1
Capacity (packs / min.) 25
Bottle Grouping Mode Drop - Down Type
Dimension 6000*2500*2000 mm
Feeding Belt Length 2150 mm
Min.Carton Size 200*160*70 mm
Max.Carton Size 400 * 300 * 300 mm
Bottle Diameter 55~100 mm
Bottle Height 70 ~ 300 mm
Mode 10KW

Technical Advantages :

1. Low investment, quick return
2. Advanced device laypout
3. International general accessories
4. Lower waste, higher productivity
5. Easy operation, rapid replacement
