What is LASER MARKING
Laser marking systems are versatile which use laser beams to mark permanently on the surface of various materials. The effect of marking is to expose the deep substance through the evaporation of the surface material, so as to engrave exquisite patterns, trademarks, and text. According to laser source type classification, they have 3 types of laser marking machines: Fiber Laser Marking Machine, C02 Laser Marking Machine, and UV Laser Marking Machine depending on the target materials and purpose.


Why Choose US
  • Stable And Durable,Simple Operation
  • After Slaes Service
  • Professional Workshop
  • Provide Free Operation Guidance
  • Safe Production

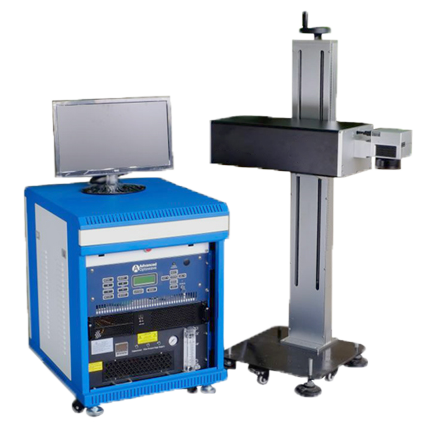

UV Ultraviolet Laser Marking Machine
The UV-P100 has a brand-new design, exquisite workmanship and high-end configuration. The quality and stability are bumpy, zero consumables, high efficiency, fine and beautiful marking effect. It is a daily chemical, beverage, cable, pipe, glass, sugar and tobacco industry The preferred marking equipment for accessories and other industries.

Laser Band 355 nm
Pulse Width Index Less Than 16ns/30KHZ
Laser Type Pulsed UV Solid Laser
Output Mode TEMoo
Spot Diameter 1.6+/-0.2mm /1.8+/-0.2mm
Repetition frequency 20KHZ—100KHZ
Effective focal length 160mm 75mm-360mm

Overall Weight About 45 kg
Cooling Method Water Cooling
Power Consumption 1200W
Body Size 930mm x 230mm x 275mm
Maximum Marking Speed 13000 mm/s
Communication Connection Number RS232, NETWORL PORT, USB, SD Card
Number of Marking Lines Arbitrarily set the number of lines in the effective marking format.
Marking Content text, graphics, barcode, real-time clock, automatic serial number, batch number and other customized content.
User Interface Standard Industrial Computer
Ambient Temperature 00C-450C without icing and condensation
Ambient Humidity 35-85%RH without icing or condensation
Power Supply Single Phase, 220V; 1KVA 50-60Hz



CO2 Laser Marking Machine

What is LASER MARKING
Laser marking systems are versatile which uses laser beam to mark permanently on the surface of various materials. The effect of marking is to expose the deep substance through the evaporation of the surface material, so as to engrave exquisite patterns, trademarks and text. According to laser source type classification,they have 3 types of laser marking machine : Fiber Laser Marking Machine, C02 Laser Marking Machine and UV Laser Marking Machine for depenting on the target materials and purpose on.


Why Choose US
  • Stable And Durable,Simple Operation
  • After Slaes Service
  • Professional Workshop
  • Provide Free Operation Guidance
  • Safe Production

CO2 Marking Machine
Nova CO2 laser adopts US SYNRAD original imported metal radio frequency laser generator, advanced all-digital adjustment scanning deflection system to ensure high-speed output while effectively ensuring high-quality logo font effect.

Laser Power 30 Watt
Laser Metal RF Tube (Chenruida)
Galvanometer Digital high-speed scanning galvanometer
Main-machine interface
10-inch integrated touch screen
Effective Range 100 mm x 100 mm
Chassis One

Rated Power  30W
Machine Weight 25Kkg
Cooling Method Full Air Cooling
Laser Wavelength 10000 mm/s
Laser Type All Metal RF Tube
Communication Connection Number RS232, USB, SD Card
Marking Range 50X50mm-200X200mm
Dimensions ( Approx ) 780 mm x 165mm x 185mm
Applicable Materials  Pet , HDPE , LDPE, PE, PP, Cardboard , Glass


Fiber Laser Marking Machine
Why Choose US
  1. Stable And Durable,Simple Operation
  2. After Slaes Service
  3. Professional Workshop
  4. Provide Free Operation Guidance
  5. Safe Production

Fiber Laser Marking Machine
Nova fiber laser equipment adopts US IPG imported laser generator, advanced all-digital adjustment scanning deflection system to ensure high-speed output while effectively ensuring high-quality logo font effect. The whole optical path and full channel sealing structure, the whole system integrates embedding.

Device Model 10W I 20W I 30W I 50W
Laser Band Optical Fiber 1064 um
Output Power Average Output 10W I 20W I 50W
Format Range Standard Configuration 100 mm x 10 mm
Effective Focal Length 155mm

Overall Weight 35 kg ~43 kg
Power Consumption 750w~1000 w
Body Size 550mm x 40mm x 110mm
Machine Structure The Main Body is ABS, and the optical path is all Aluminum Alloy.
Maximum Linear Marking Speed 13000 mm/s
Information Tips Focus, Preview Red Light Tips
Communication Connection Number
RS232, Network Port, USB
Number of marking lines Arbitrarily set the number of lines in the effective marking Format
User Interface Embedded touch screen in the machine, wireless integrated keyboard
Ambient Temperature 00C-450C without icing and condensation
Ambient Humidity 35-85%RH without icing or condensation
Power Supply Single Phase, 220V; 1KVA 50-60Hz
